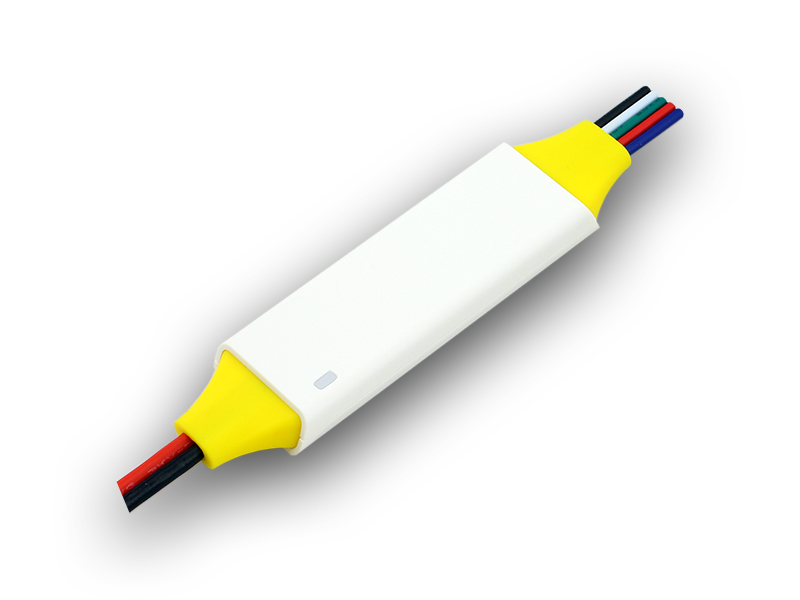

PB.0 CASAMBI 5-in-1 CV Controller

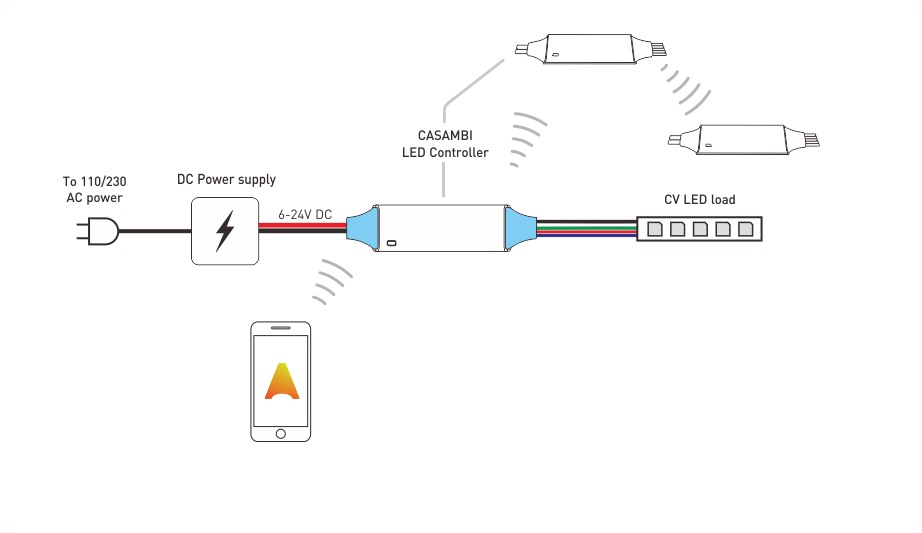

1 / 5 PB.0 LED controller is designed to drive single color to RGB+White constant voltage LED products in voltage range of DC 6-24V . With powerful functions of Casambi platform, it also has advanced user parameters to fine tune the application. With compact size and lead wire design, the controller can be installed in narrow space. The IP68 waterproof feature is available on -S version for various applications.
| CASAMBI CV LED controller | ||||
| Model | PB.0 | |||
| Function | 5-in-1 CV controller (Single color, CCT, RGB, RGBW and 4-ch dimmer) | |||
| Electrical Specification | ||||
| Working Voltage | DC 6-24V | |||
| Rated Output Current | CV mode, each channel 3A, total max 12A | |||
| Smartphone Connection | by CASAMBI app, based on BLE | |||
| RF Band | 2.4GHz ISM band | |||
| Wireless Transmit Power | <7dBm | |||
| Wireless Distance | >15 meters at open area | |||
| App Support | CASAMBI App on iOS and Android platform | |||
| PWM output grade | 4000 levels | |||
| PWM Frequency | 500Hz-4KHz configurable from app | |||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |||
| IP Grade | IP63 for regular version, IP68 for -S version | |||
| Working Temperature | -30~60℃ | |||
| Functions | ||||
| Model profile | Single color, CCT, RGB, RGBW or 4-ch dimmer; configurable from app | |||
| Smartphone Control | dimming, color setting, group features, via Casambi app | |||
| Gradient speed | Adjustable from app | |||
| Power & LED Connector | ||||
| Power Connector | 16AWG lead wire | |||
| LED Connector | 20AWG lead wire | |||
| Dimension & Weight | ||||
| Dimension | 87x21x8.5mm | |||
| Net Weight | 23g / 26g | |||
Specifications are for reference; please refer to the user manual for details.
