VD200CB(-S) VD series constant voltage dimmable driver

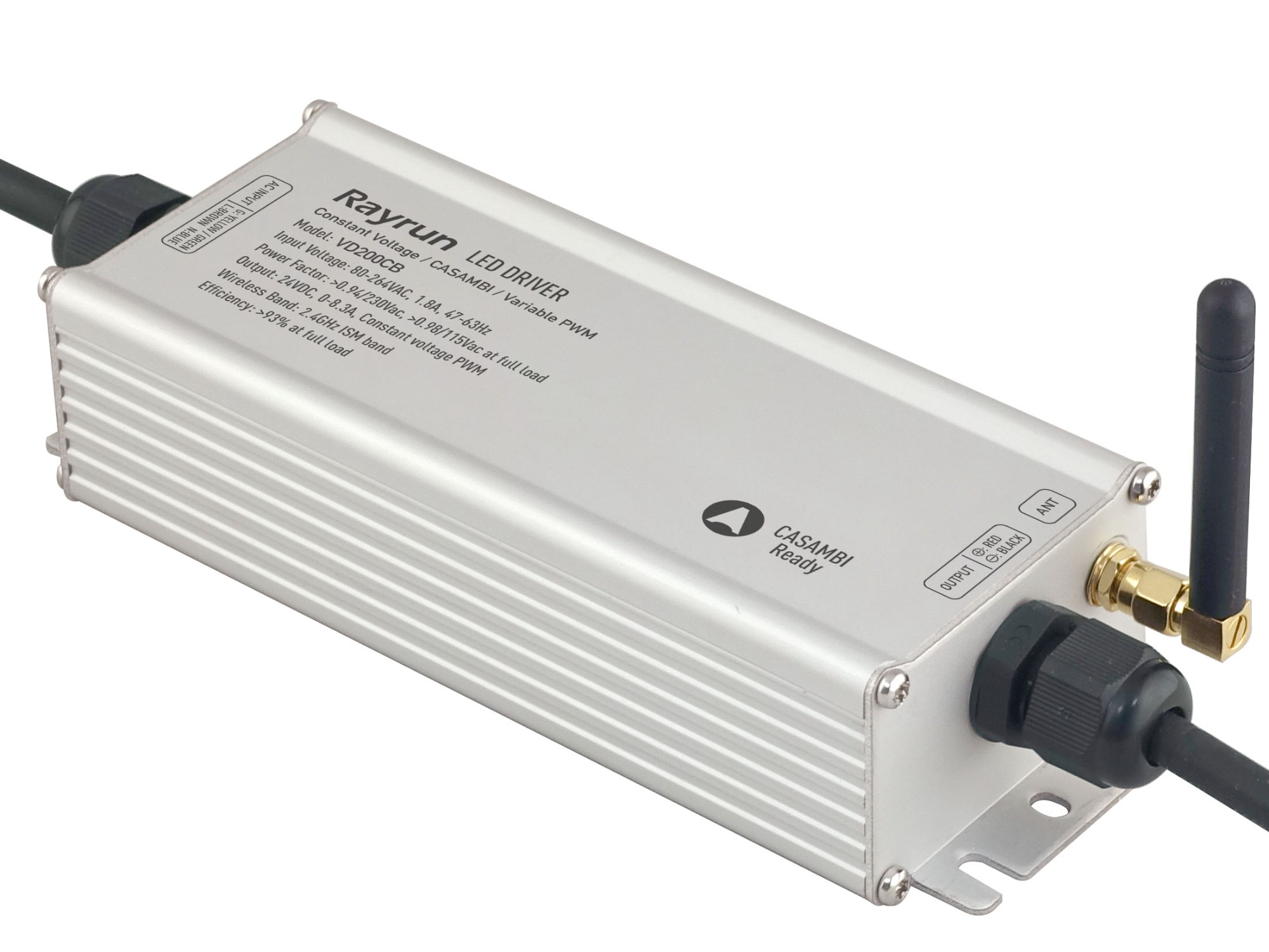

1 / 3 VD200CB(-S) is a Casambi ready constant voltage LED driver for LED lighting application. It is AC powered and output DC 24V with max 200W power.
The output PWM frequency and gradient speed can be configured from the Casambi app. The IP67 waterproof feature is available on -S version for various applications.
| CASAMBI Constant Voltage LED Driver | ||
| Model | VD200CB(-S) | VD400CB-S |
| Function | 24V/200W Single color CV LED driver | 24V/400W Single colro CV LED driver |
| Electrical Specification | ||
| Input Voltage | AC 100-240V | |
| Input Current | 4.2A@110V, 2.1A@220V | |
| Input Frequency | 47-63Hz | |
| Inrush Current | 40A@110V, 80A@220V | |
| Leakage Current | <0.75mA@240V | |
| Power Factor | >0.98@110V, >0.94@220V | |
| Output Voltage | DC 24±1V | |
| Rated Output Power | 200 Watts | 400 Watts |
| Wireless Connection | CASAMBI protocol | |
| App Support | CASAMBI App on iOS and Android platform | |
| RF Band | 2.4GHz ISM band | |
| Wireless Transmit Power | <8dBm | |
| Wireless Distance | >15 meters at open area | |
| Protection | Overload / over heat / output short circuit | |
| Working Temperature | -25 - +50℃ | |
| Water proof | IP63 standard, IP67 for -S version | IP67 |
| Functions | ||
| Output PWM frequency | 500Hz-4KHz adjustable from app | |
| Gradient speed | 6-level adjustable from app | |
| Dimension & Weight | ||
| Dimension | 61.5x138x39mm | 90x163x44mm |
| Net Weight | 360g | 855g |
Specifications are for reference; please refer to the user manual for details.
