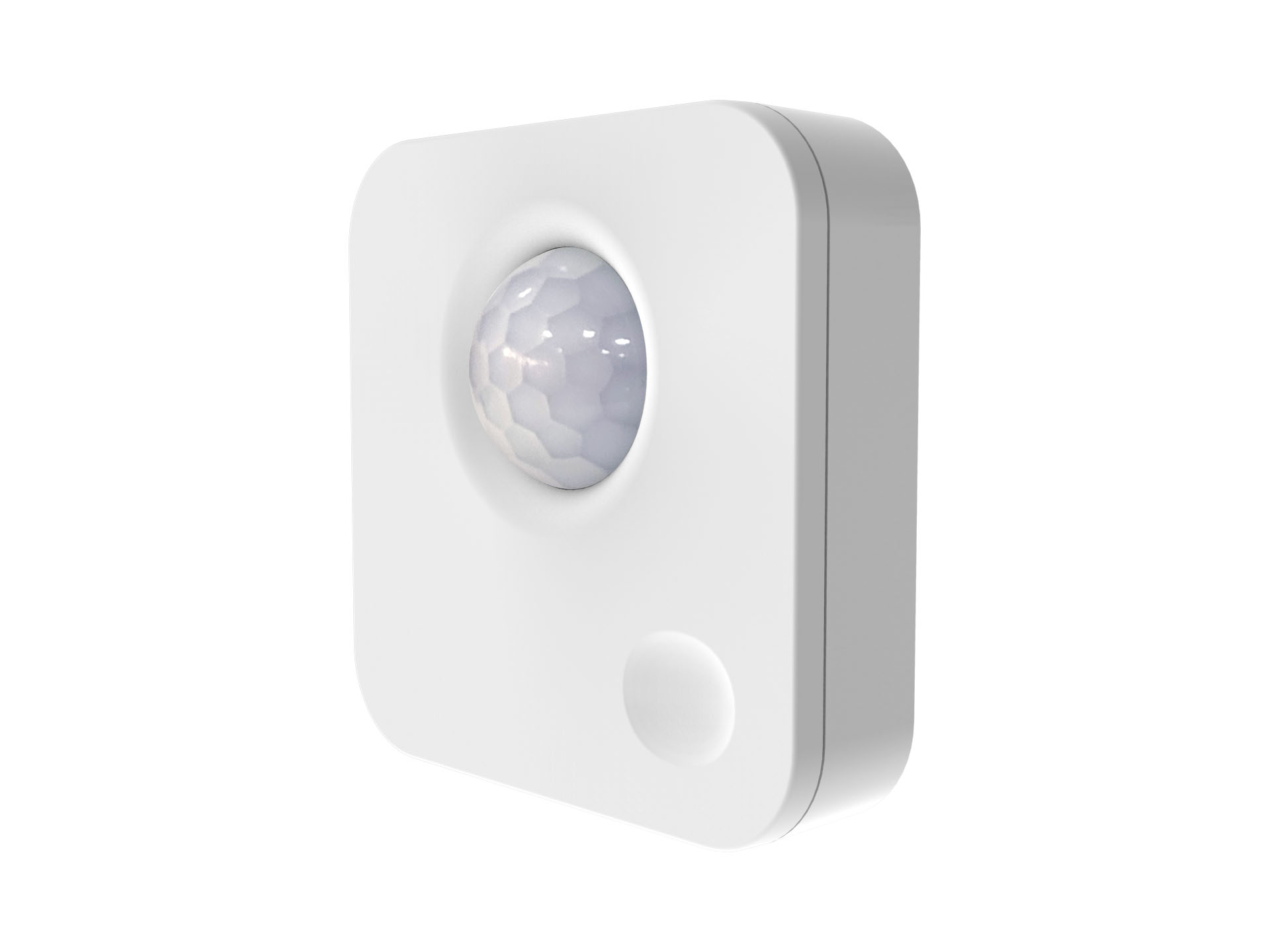

PS02 Casambi PIR Sensor / Remote
.jpg)
1 / 4 PS02 is a passive presence sensor. It needs to be used with Casambi compatible LED controller or driver to turn on lights while presence detection, user also can use it as a remote controller with sensitivity adjustment and timed sensing feature.
There’s advanced feature with detection sensitivity and luminance trigger level can be adjusted from the Casambi app. With the long battery life option (-L) and ultra-low standby power, it can work more than 5 years with free of battery replacement.
| Casambi Presence & Light Sensor | ||
| Model | PS02 | PS02-L |
| Function | PIR presence sensor and light sensor, with sensitivity adjustment and timed sensing feature. | |
| Electrical Specification | ||
| Working Voltage | DC3V, CR2032 cell battery | DC3V, Built-in CR2450 and auxilary CR2032 battery |
| Wireless Connection | Casambi protocol | |
| RF Band | 2.4GHz ISM band | |
| Wireless Transmit Power | <8dBm | |

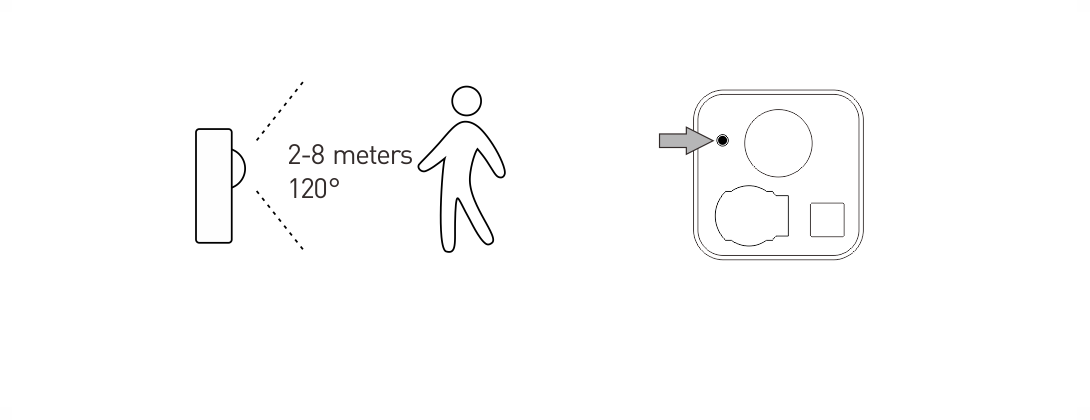

| PIR Sensitivity | 2-8 meters, with 120° range, adjustable from app | |
| Illuminance detecting range | 0-4000lux | |
| Wireless Distance | >20 meters at open area | |
| Standby Power Consumption | <2uA @ transport mode, <10uA @ presence monitoring | |
| Typical battery life time | >1.5 years (timed light detection off) | >5 years for built-in battery, >1.5 years for auxilary battery after built-in battery out. (timed light detection off) |
| Working Temperature | -20~30℃ | |
| Functions | ||
| Operation Mode | PIR sensing, under-hood press key | |
| Human Detection Sensitivity | 3 levels, adjustable from app | |
| Illuminance Detection Interval | 5-3600 seconds, adjustable from app | |
| Illuminance Detection Activation | Timed or only work when presence detected. Adjustable from app | |
| Transport Mode | Hold-pressing pairing key to activate | |
| Dimension & Weight | ||
| Dimension | 60x60x20mm | |
| Net Weight | 17g | 19g |
Specifications are for reference; please refer to the user manual for details.
