MD400CB Casambi Smart PLC Master-Slave Master Driver

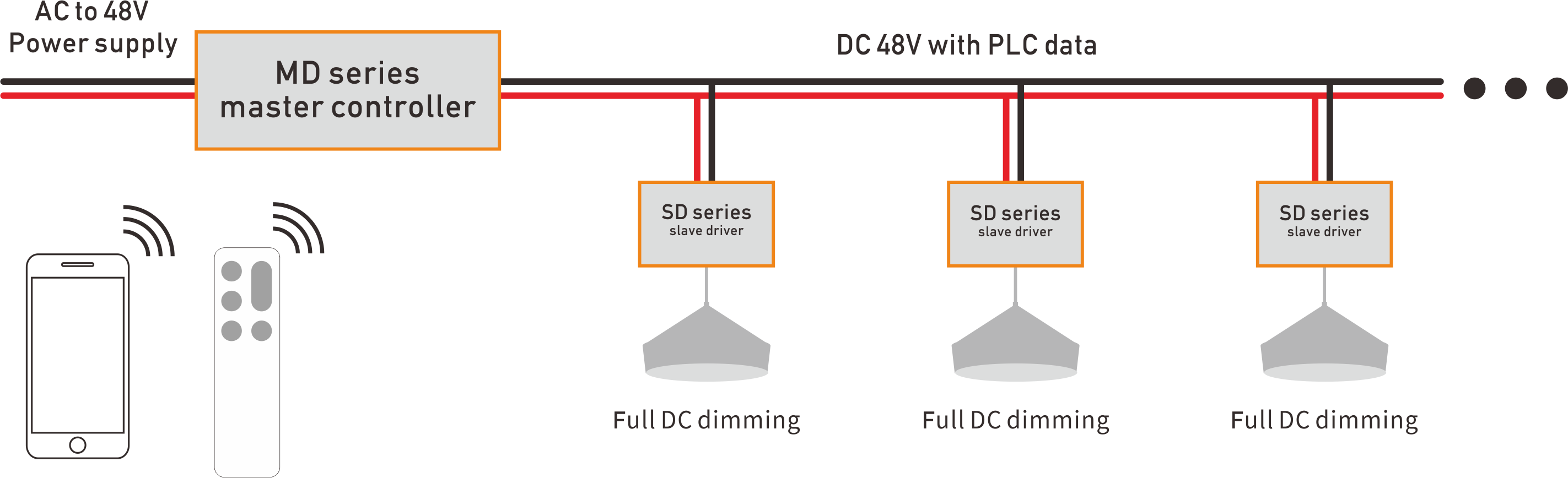

1 / 2 MD400CB is master driver to work with the compatible slave drivers for LED lighting application. The power input is DC 48V, it can receive Casambi command and output DC 48V power with digital power line communication (PLC) commands to drive and control slave drivers. The slave driver can drive LED lights with the 48V power and PLC commands from this model.
Besides dimming and color adjusting, the LED rated current, fade time, current trim level, dimming curve and group features are adjustable from the Casambi app. The master driver will transfer these commands to slave drivers via the power cable.
Features
- DC 48V PLC communication
- Flexible master-slave configuration
- Slave driver feature programmable
- Slave driver groupable
- Single color / CCT function
- Waterproof option
| Casambi Master PLC LED Driver | |
| Model | MD400CB (-S) |
| Function | Smart wireless PLC master driver |
| Electrical Specification | |
| Working Voltage | DC 48V |
| Output Voltage | DC 48V with PLC data |
| Rated Output Power | 400 Watts |
| Wireless Smart | CASAMBI based on bluetooth low energy |
| RF Band | 2.4GHz ISM band |
| Master-Slave Communication | Rayrun patent power line communication (PLC) protocol |
| Protection | Overload / over heat / output short circuit |
| IP Grade | IP63 for standard version, IP68 for -S version |
| Working Temperature | -20~50℃ |
| Functions | |
| Operation Mode | Work with smart system and drive slave drivers with PLC data |
| Output Feature | Connect to multiple SD series slave driver, control slave drivers via PLC protocol |
| Power & LED Connector | |
| Power Connector | 16AWG cable |
| Output Connector | 16AWG cable |
| Dimension & Weight | |
| Dimension | 81x26x20mm (cable excluded) |
Specifications are for reference; please refer to the user manual for details.
