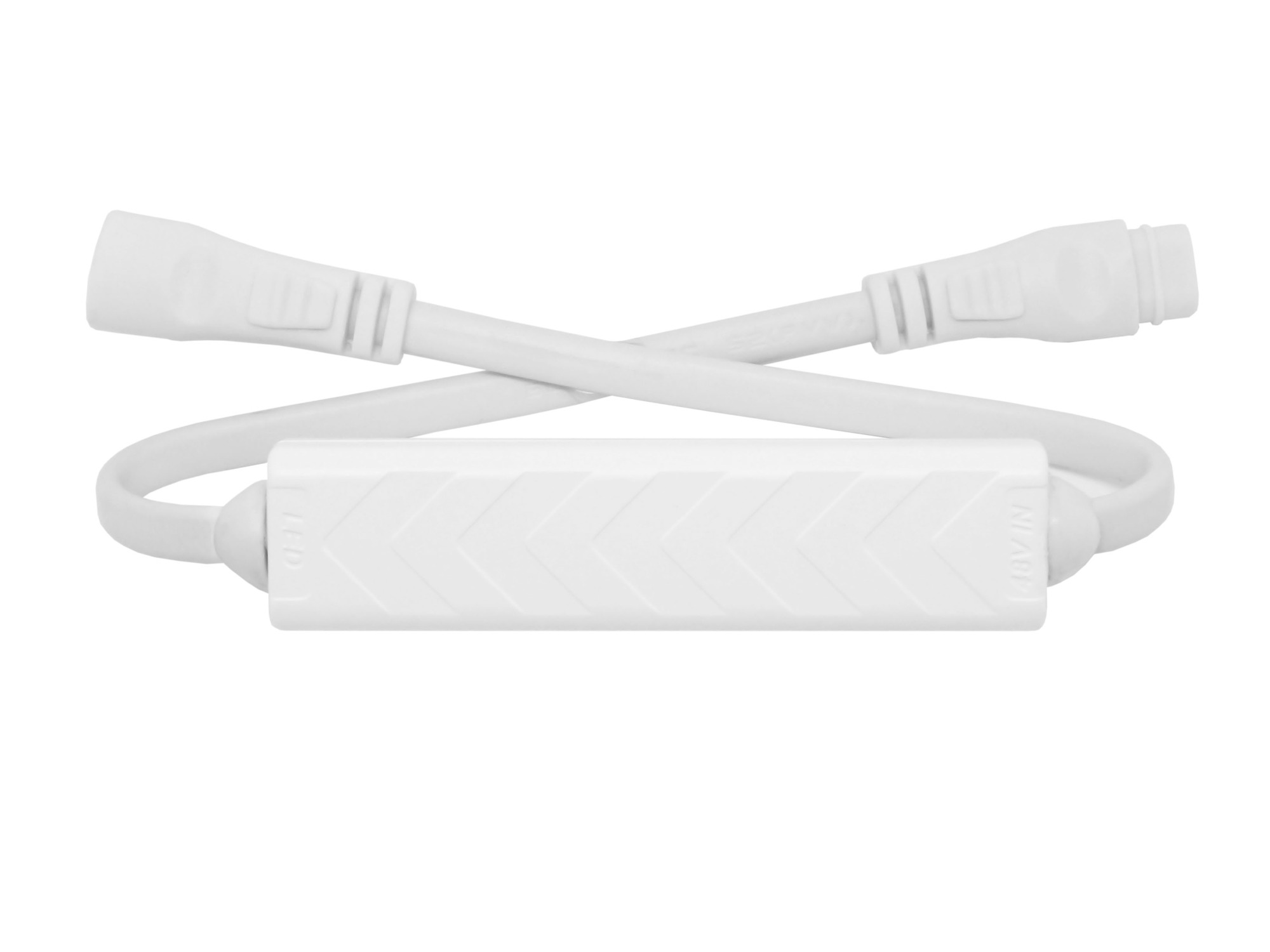

SDC25-BH/EH SD series PLC slave driver
(1).jpg)
1 / 4 SDC25-BH/EH is a slave LED driver to work with specific master driver for LED lighting application. The power input is DC 48V with power line communication (PLC) commands and it can drive LED lights in voltage range of 0-48V and rated current range of 100-700mA.
Besides dimming and color temperature adjusting, the output current, fade time, current trim level, dimming curve and group features are adjustable via the PLC commands from master driver.
With the advanced full DC dimming scheme, the connected luminaire will be flicker free from zero to maximum brightness, and build premium lighting experience.
| Slave PLC LED Driver | |||
| Model | SDC25-EH | SDC25-BH | SDF20 (-S) |
| Function | 25W single color driver | 25W CCT driver | 20W single color driver |
| Electrical Specification | |||
| Working Voltage | DC 48V | ||
| Efficiency | >93% @ full load | ||
| Output Voltage | DC 0-46V | ||
| Output Current | 100-700mA Programmable | ||
| Rated Output Power | 25 Watts | 20 Watts | |
| Master-Slave Communication | Rayrun patent power line communication (PLC) protocol | ||
| Protection | Overload / over heat / output short circuit | ||
| Dimming mode | Full time DC non-flicker constant current | ||
| Output Setting | App adjustable @ 1mA resolution | ||
| Waterproof | IP63 | IP63 | IP63 / IP68(-S Version) |
| Working Temperature | -20~50℃ | ||
| Functions | |||
| Operation Mode | Work with PD/MD series master driver | ||
| Dimming curve | Linear, logarithm, Optimized logarithm | ||
| Fading period | 0-25.5 Seconds | ||
| Power & LED Connector | |||
| Power Connector | Lead wire with in-cable connector | Lead wire | |
| LED Connector | Lead wire with in-cable connector | Lead wire | |
| Dimension & Weight | |||
| Dimension | 70x17x11.5mm (Cable excluded) | 87x21x8.5mm (Cable excluded) | |
| Net Weight | 22 grams | 22 grams | 23 grams |
Specifications are for reference; please refer to the user manual for details.
