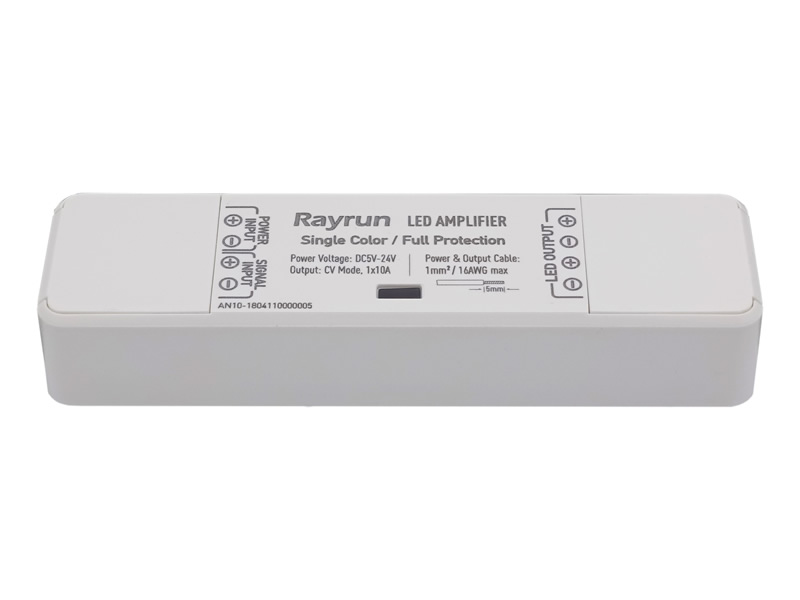

AN10 Nano Series Single Color LED Amplifier

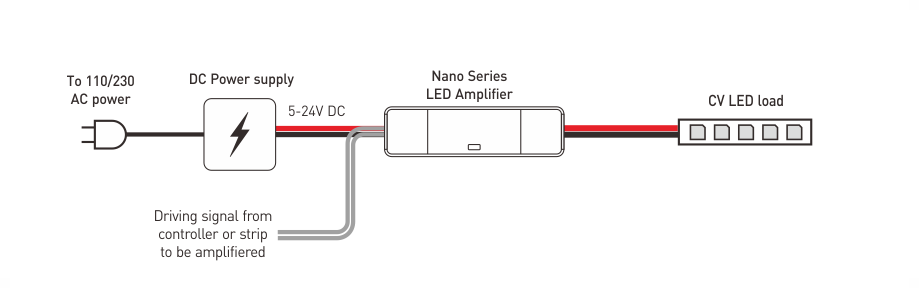

1 / 4 AN10-AN30 LED amplifier is designed to amplify constant voltage LED control signal and drive constant voltage LED products with common anode connection, the working voltage range is DC5-24V. This series amplifier has power input, signal input and LED output connectors with cable holder. The amplifier has full protection feature against overload, shortcircuit, over heat and wrong wiring. A multi-color indicator on the top displays all working status of the amplifier.
| AN10-30 Nano Series LED Amplifier | |||
| Model | AN10 | AN20 | AN30 |
| Electrical Specification | |||
| Working Voltage | DC 5-24V | ||
| Function | Single Color | Tunable White | RGB |
| Rated Output Current | 1x10A | 2x5A | 3x4A |
| Efficiency | >97% | ||
| Input Voltage Swing | Power Voltage ±3V | ||
| Time Shift | <5uS | ||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | ||
| Working Temperature | -20~55℃ | ||
| Components & PCB | SMD parts / 4-layer FR-4 pcb | ||
| Power & LED Connector | |||
| Power Connector | Slot screw terminal, max 16AWG each slot, two positive and two negative in parallel. | ||
| LED Input Connector | |||
| LED Output Connector | |||
| Dimension & Weight | |||
| Dimension | 87x24x15mm | ||
| Net Weight | 20g | ||
Specifications are for reference; please refer to the user manual for details.
