R103 Entry-level Mini RGB LED Amplifier
1 / 7 The R103 series RGB LED amplifier is designed to drive constant voltage LED products in voltage range of DC5-24V. It regenerates PWM driving signal and can expand the LED driving range at synchronous mode.

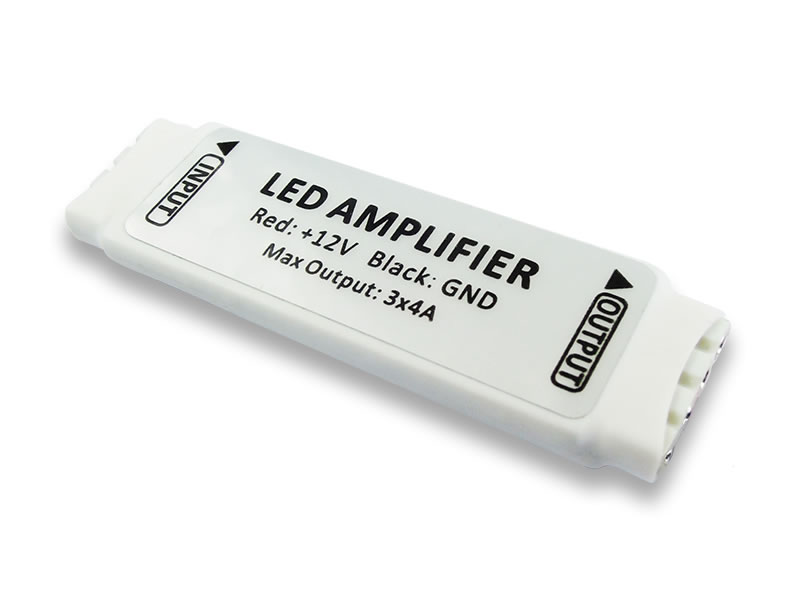

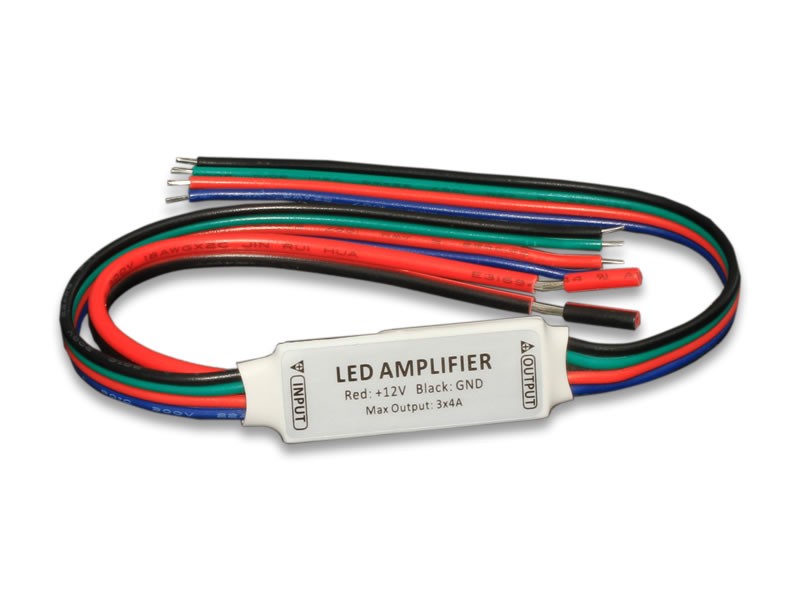

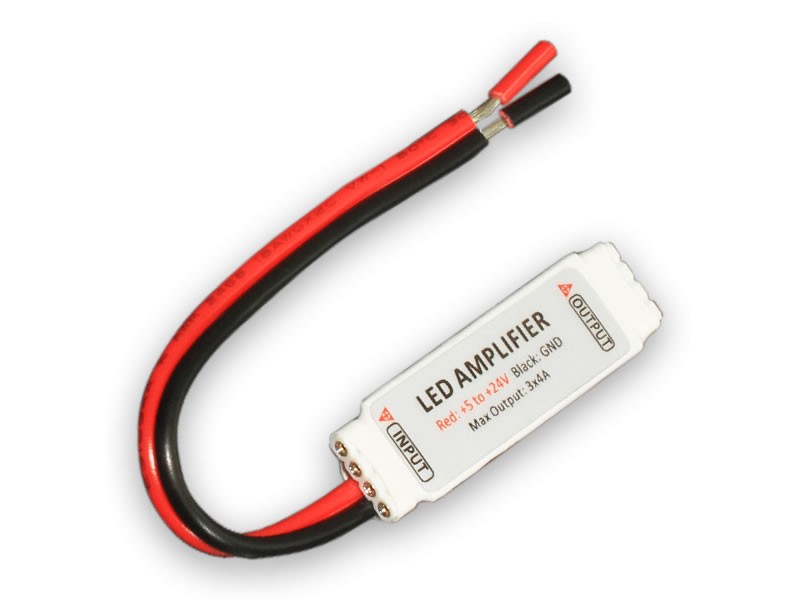

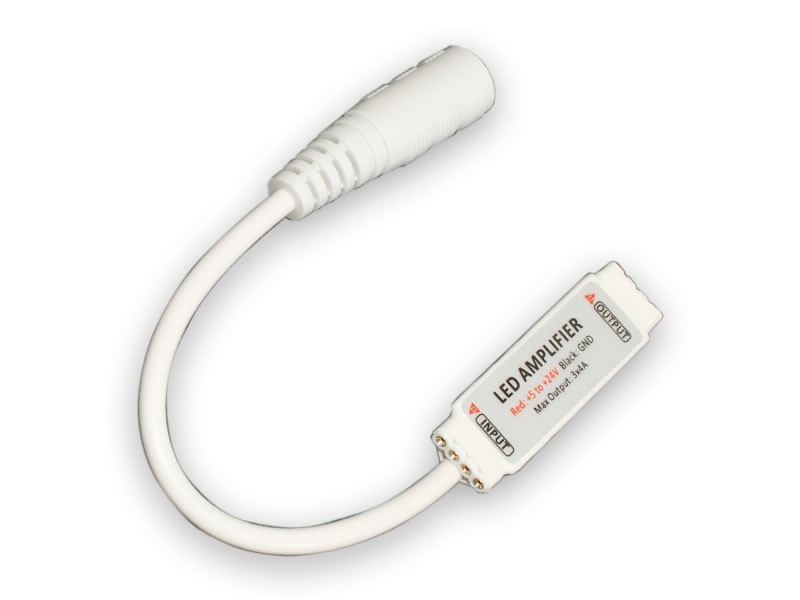

| R103 Mini RGB LED Amplifier | ||||
| Model | R103-S | R103-WF | R103-WS | R103-WD |
| Electrical Specification | ||||
| Working Voltage | 8~16V | 5~24V | ||
| Rated Output Current | 3x2A | |||
| Efficiency | >97% | |||
| Input Voltage Swing | Power Voltage ±3V | |||
| Rising Edge Time Shift | <10uS | |||
| Falling Edge Time Shift | <5uS | |||
| Wrong Polarity Protection | Yes | |||
| Working Temperature | -30~70℃ | |||
| Components & PCB | SMD parts / Gold plated double side FR-4 pcb | |||
| Power & LED Connector | ||||
| Power Connector | Red/Black Cable | Red/Black Cable | Red/Black Cable | 5.5mm DC Female Jack |
| LED Connector | 4-Pin Flat Female Jack | 4-color Flat Cable | 4-Pin Flat Female Jack | 4-Pin Flat Female Jack |
| Dimension & Weight | ||||
| Dimension | 33x12x5mm | |||
| Cable Length | 110mm | 110mm | 110mm | 136mm |
| Net Weight | 4.8g | 8.5g | 4.8g | 7.8g |
Specifications are for reference; please refer to the user manual for details.
