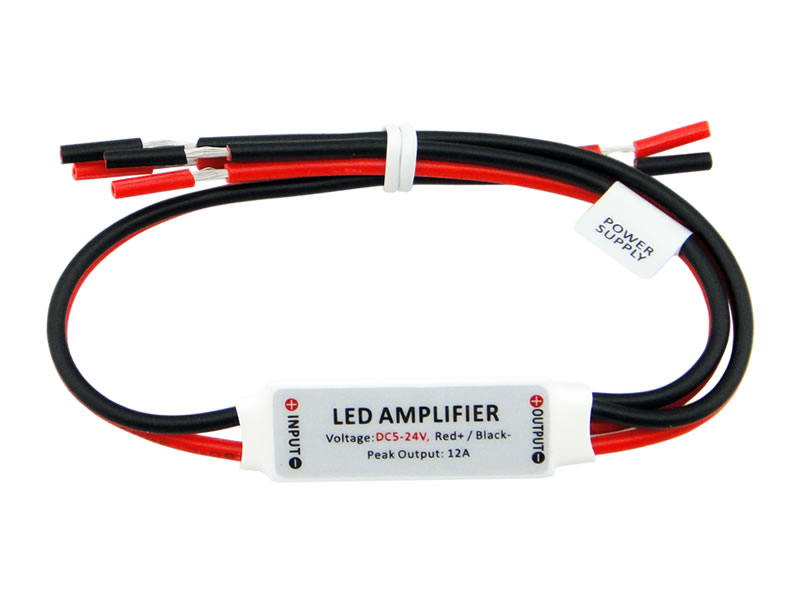

R1032 Entry-level Mini Single Color Amplifier
1 / 4 The R1032 series single color LED amplifier is designed to drive constant voltage LED products in voltage range of DC5-24V. It regenerates PWM driving signal and can expand the LED driving range at synchronous mode.
| R1032 Mini Single Color LED Amplifier | |||
| Model | R1032-WS | ||
| Electrical Specification | |||
| Working Voltage | DC 5-24V | ||
| Rated Output Current | 5A | ||
| Efficiency | >95% | ||
| Input Voltage Swing | Power Voltage ±3V | ||
| Rising Edge Time Shift | <10uS | ||
| Falling Edge Time Shift | <5uS | ||
| Wrong Polarity Protection | Yes | ||
| Working Temperature | -30~60℃ | ||
| Components & PCB | SMD parts / Gold plated double side FR-4 pcb | ||
| Power & LED Connector | |||
| Power Connector | Red/Black Cable | ||
| LED Connector | Red/White Cable | ||
| Dimension & Weight | |||
| Dimension | 33x12x5mm | ||
| Cable Length | 110mm | ||
| Net Weight | 7.4g | ||
Specifications are for reference; please refer to the user manual for details.
