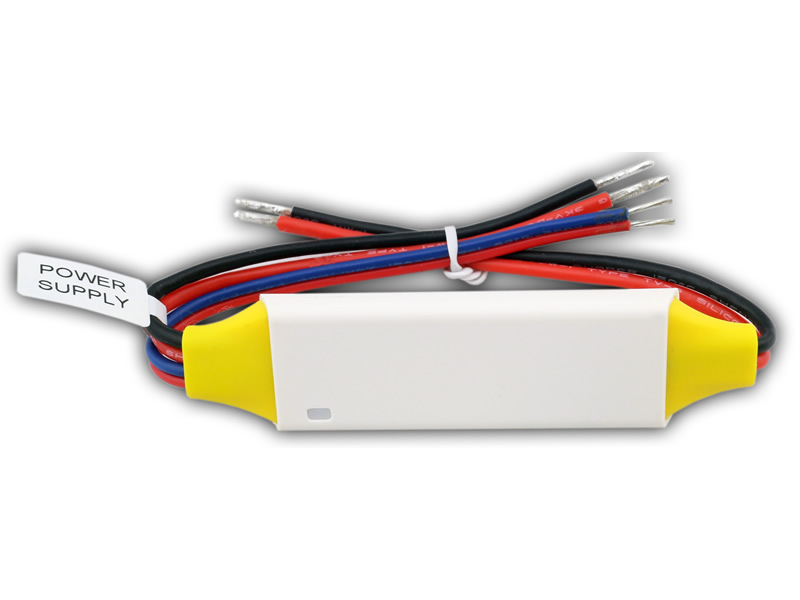

R2032 Professional Single Color Amplifier
1 / 4 The R2032 series single color LED amplifier is designed to drive constant voltage LED products in voltage range of DC5-24V. It regenerates PWM driving signal and can expand the LED driving range at synchronous mode.
| R2032 Professional Single Color LED Amplifier | ||||
| Model | R2032 | R2032-S | ||
| Electrical Specification | ||||
| Working Voltage | DC 5-24V | |||
| Rated Output Current | 1x15A | |||
| Efficiency | >97% | |||
| Input Voltage Swing | Power Voltage ±3V | |||
| Rising Edge Time Shift | <4uS | |||
| Falling Edge Time Shift | <3uS | |||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |||
| Working Temperature | -20~55℃ | |||
| IP Grade | IP-63 | IP-68 | ||
| Components & PCB | SMD parts / 4-layer FR-4 pcb | |||
| Power & LED Connector | ||||
| Power Connector | AWG16 Red-black cable | |||
| LED Input Connector | AWG22 flat cable | |||
| LED Output Connector | AWG16 Red-black cable | |||
| Dimension & Weight | ||||
| Dimension | 87x21x8.5mm | |||
| Cable Length | 120mm | |||
| Net Weight | 19g | 22g | ||
Specifications are for reference; please refer to the user manual for details.
