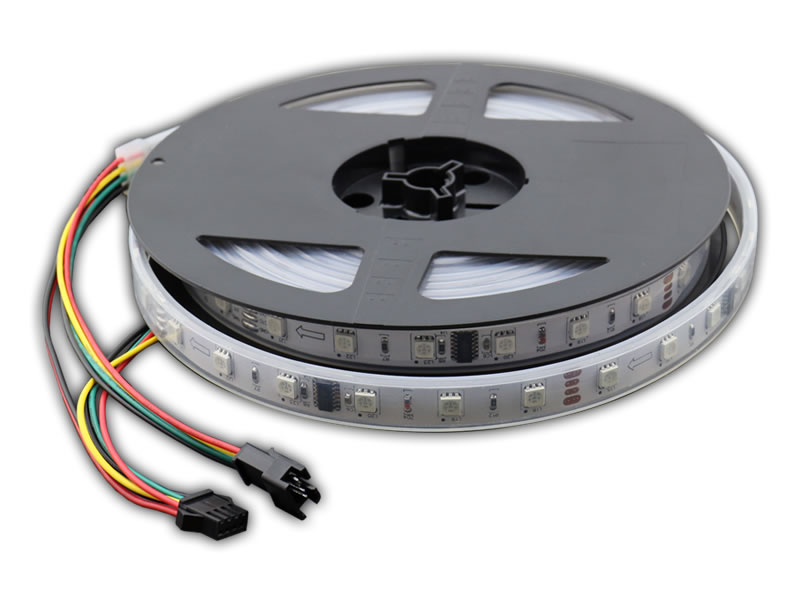

S307 Digital RGB LED Strip light
1 / 3 S307 Digital LED strip is designed with latest high integrated LED driving solution, each meter strip has 48 addressable RGB LEDs and can play full RGB color. S307 strip can be cascaded up to 50 meters and be programmed with hundreds magnificent running modes. With our patent anti-bending design, it’s also more durable. it’s one of the best solution for lighting decorating applications.
| S307/308 Digital RGB LED Strip | ||
| Model | S307 | S308 |
| Electrical Specification | ||
| Working Voltage | DC 12V | |
| Roll Length & LED pixels | 48 LEDs / meter, 5 meters / roll | 24 LEDs / meter, 5 meters / roll |
| Power Consumption | 48W / roll | 24W / roll |
| Addressing Range | 3 LEDs addressable | |
| Working Temperature | -20~50℃ | |
| IP Grade | IP-22, IP-65, IP-67 | |
| IP Finish | IP22: Bare board; IP65: Glue dipped; IP67: Silicon tubed | |
| Installation Method | Double side adhesive tape for IP22 and IP65; Silicon clips for IP67 | |
| Function | ||
| Chasing Effects | Yes, effects set from controller | |
| Static Color | Yes, color and brightness set from controller | |
| Power & LED Connector | ||
| Power Connector | 5521 DC female jack at rear end | |
| Data Connector | 3-Pin SM type connector at dual end | |
| Dimension & Weight | ||
| Dimension | 5521 DC female jack at front end | |
Specifications are for reference; please refer to the user manual for details.
