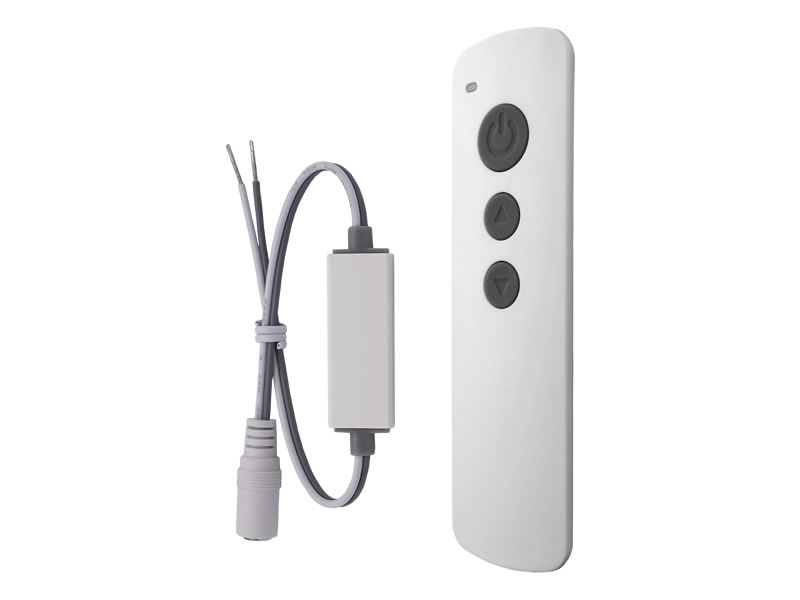

T112 Mini-T Advanced Single Color Controller
1 / 5 T112 LED dimmer is designed to drive constant voltage single color LED products such as LED strip or LED module in voltage range of DC5-24V. The receiver works with the RF wireless remote controller, user can setup LED brightness from the remote controller.
| Mini T-series RF Wireless LED controllers | |||||||
| Model | T110(-H) | T111(-H) | T112(-H) | T120(-H) | T122(-H) | T130(-H) | T140(-H) |
| Electrical Specification | |||||||
| Function | Single color | CCT | Dual wire CCT | RGB | RGBW | ||
| Working Voltage | DC 5-24V | ||||||
| Rated Output Current | 5A | 2x3A | 3A | 3x2A | 4x2A | ||
| Remote Control | RF wireless slim remote controller | ||||||
| Remote Control Frequency | 433.92MHz | ||||||
| Remote Control Battery | CR2032 3V cell battery | ||||||
| Remote Transmit Power | <10dBm | ||||||
| Remote Distance | >15 meters in open area | ||||||
| Remote Controller Paring | Each receiver can be paired with max 5 remote controllers / Free pairing mode | ||||||
| PWM Physical Level | 256-Level | ||||||
| PWM Frequency | 1KHz | ||||||
| Protection | Wrong Polarity / Overheat | ||||||
| Working Temperature | -30~50℃ for heatshrink tube, -30~60℃ for ABS+silicon housing | ||||||
| Components & PCB | SMD parts / Double side FR-4 pcb | ||||||
| Controller Housing | Heatshrink tube as standard / ABS+silicon for -H version | ||||||
| Functions | |||||||
| Brightness Level | 10 levels | 100 levels | 11 levels | 11 levels | 5 levels | 5 for RGB, 10 for White | |
| Color Temperature, Color | N/A | 7 levels CCT | 30 Colors | 30 Colors | |||
| Dynamic Mode | 8 Modes | N/A | N/A | N/A | N/A | 43 modes | 42 modes |
| Dynamic Speed Level | 10 levels | N/A | N/A | N/A | N/A | 10 levels | 10 levels |
| Smooth Fading | Yes | ||||||
| Power Off Memory | Yes | ||||||
| Power & LED Connector | |||||||
| Power Connector | cable lead or 5521 DC jack, customizable | ||||||
| LED Connector | cable lead or 5521 DC jack, customizable | ||||||
| Dimension & Weight | |||||||
| Dimension | Main unit: 51x15x7mm; T112 Remote:122x35x9mm; Other Remote: 86.5x36x7.5mm | ||||||
| Cable Length | 120mm standard, customizable | ||||||
| Net Weight | 25g | 25g | 38g | 25g | 25g | 25g | 25g |
Specifications are for reference; please refer to the user manual for details.
