N11 Nano RF Single Color LED Dimmer

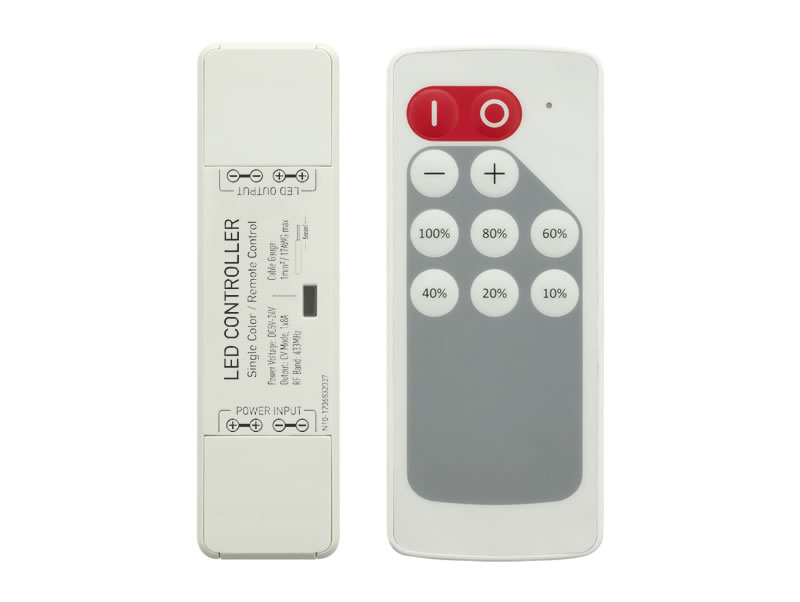

1 / 5 N11 single color LED dimmer is designed to drive constant voltage LED products in voltage range of DC5-24V. The main unit works with a RF remote controller, user can adjust LED brightness on the remote controller. The main unit is powered by DC power supply and receives remote controller commands to drive LED fixtures.
| Nano RF Wireless Single Color LED controller | |||
| Model | N10 | N11 | N12 |
| Function | Dimming and effects | Dimmer with shortcut | Dimmer |
| Electrical Specification | |||
| Working Voltage | DC 5-24V | ||
| Rated Output Current | 1x10A | ||
| Remote Control | RF wireless remote controller | ||
| Remote Control Frequency | 433.92MHz | ||
| Remote Control Battery | CR2032 3V cell battery | ||
| Remote Transmit Power | <10dBm | ||
| Remote Distance | >15 meters in open area | ||
| Remote Controller Matching Mode | Each unit can be matched to 5 remote controllers / remote controller can be matched to any receiver | ||
| PWM Output Grade | 4000 Levels | ||
| PWM Frequency | 1KHz | ||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | ||
| Working Temperature | -30~60℃ | ||
| IP Grade | IP-40 | ||
| Components & PCB | SMD parts / FR-4 pcb | ||
| Functions | |||
| Brightness Level | 100 Levels | 100 Levels | 11 Levels |
| Dynamic Mode | 8 modes | NA | NA |
| Dynamic Speed Level | 10 Levels | NA | NA |
| Brightness Level Shortcut | 4 Levels | 6 Levels | NA |
| Smooth Fading | Yes | Yes | Yes |
| Power Off Memory | Yes | Yes | Yes |
| Power & LED Connector | |||
| Power Connector | Slot screw block terminal, max 12AWG cable | ||
| LED Connector | |||
| Dimension & Weight | |||
| Dimension | Main unit: 87x24x15mm, Remote: 86.5x36x7.5mm(122x35x9mm) | ||
| Net Weight | 38g | ||
Specifications are for reference; please refer to the user manual for details.
