N30 Nano Series RF RGB LED controller

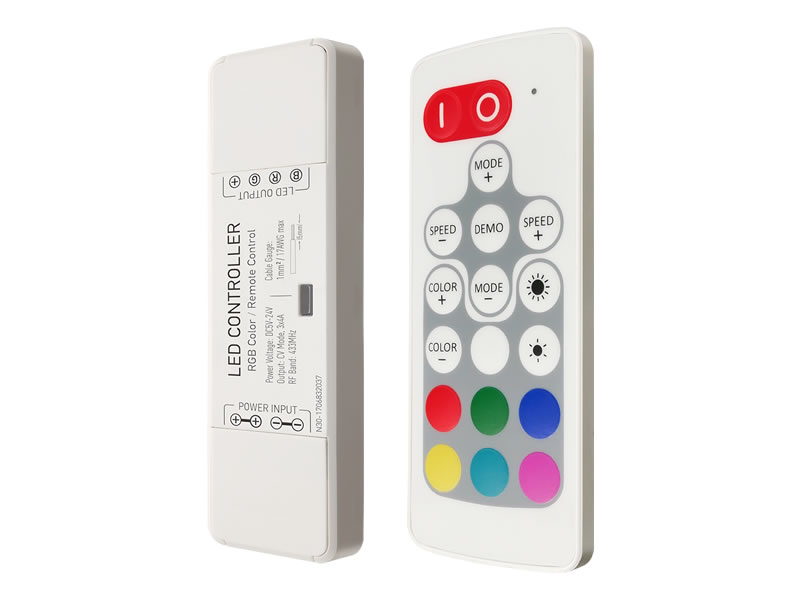

1 / 5 N30 RGB LED controller is designed to drive constant voltage LED products with common anode connection in voltage range of DC5-24V. The main unit works with a RF remote controller, user can setup RGB LED color, brightness and dynamic modes on the remote controller, the main unit is powered by DC power supply and receives remote controller commands to drive LED fixtures.
| Nano RF Wireless CCT / RGB / RGBW LED controller | ||||
| Model | N20 | N21 | N30 | N40 |
| Function | CCT | Dual wire CCT | RGB | RGBW |
| Electrical Specification | ||||
| Working Voltage | DC 5-24V | |||
| Rated Output Current | 2x5A | 5A | 3x4A | 4x3A |
| Remote Control | RF wireless remote controller | |||
| Remote Control Frequency | 433.92MHz | |||
| Remote Control Battery | CR2032 3V cell battery | |||
| Remote Transmit Power | <10dBm | |||
| Remote Distance | >15 meters in open area | |||
| Remote Controller Matching Mode | Each unit can be matched to 5 remote controllers / remote controller can be matched to any receiver | |||
| PWM Output Grade | 4000 Levels | |||
| PWM Frequency | 1KHz | |||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |||
| Working Temperature | -30~60℃ | |||
| IP Grade | IP-40 | |||
| Components & PCB | SMD parts / FR-4 pcb | |||
| Functions | ||||
| Brightness Level | 11 levels | 5 levels | 10 for white, 5 for RGB | |
| Color Temperature, Color | 7 levels CCT | 30 colors | 30 colors | |
| Dynamic Mode | NA | NA | 42 modes | 42 modes |
| Dynamic Speed Level | NA | NA | 10 levels | 10 levels |
| Smooth Fading | Yes | |||
| Power Off Memory | Yes | |||
| Power & LED Connector | ||||
| Power Connector | Slot screw block terminal, max 12AWG cable | |||
| LED Connector | Slot screw terminal, max 17AWG each slot (max 12AWG for N21) | |||
| Dimension & Weight | ||||
| Dimension | Main unit: 87x24x15mm, Remote: 86.5x36x7.5mm | |||
| Net Weight | 38g | |||
Specifications are for reference; please refer to the user manual for details.
