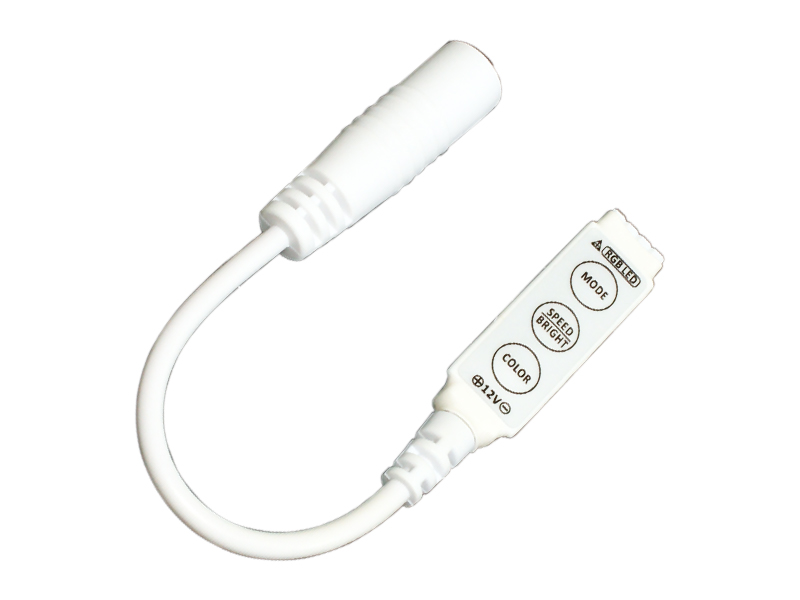

R101 Entry-level Mini 3-Key RGB controller
1 / 4 The R101 series of RGB LED controller is designed to drive constant voltage LED products in voltage range of DC5-24V. User can turn on/off, adjust brightness, set different color or set dynamic modes conveniently via the keys on controller body.

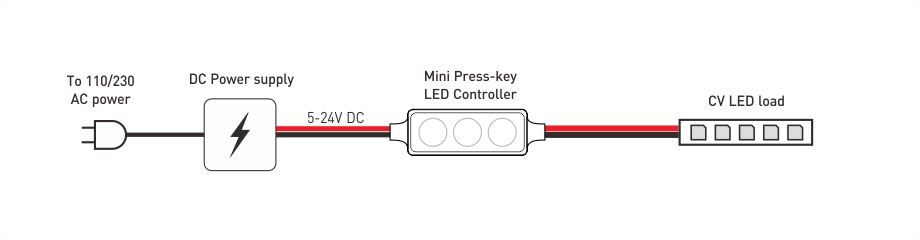

| R101 Mini 3-Key RGB LED controller | |||||
| Model | R101-S | R101-D | R101-WF | R101-WS | R101-WD |
| Electrical Specification | |||||
| Working Voltage | DC 8-16V | DC 5-24V | |||
| Rated Output Current | 3x2A | ||||
| PWM Control Level | 256-Level | ||||
| PWM Frequency | 190Hz | ||||
| Wrong Polarity Protection | Yes | ||||
| Working Temperature | -30~70℃ | ||||
| Components & PCB | SMD parts / Gold plated double side FR-4 pcb | ||||
| Functions | |||||
| Dynamic Mode | 19 modes | ||||
| Dynamic Speed Level | 10 Levels | ||||
| Static Color | 20 colors | ||||
| Color Brightness Level | 5 Levels | ||||
| Demo Mode | Yes | ||||
| On/Off Operation | Yes | ||||
| Auto Recall Function | Yes | ||||
| Power & LED Connector | |||||
| Power Connector | Red/Black Cable | 5.5mm DC Female Jack | Red/Black Cable | Red/Black Cable | 5.5mm DC Female Jack |
| LED Connector | 4-Pin Flat Female Jack | 4-Pin Flat Female Jack | 4-color Flat Cable | 4-Pin Flat Female Jack | 4-Pin Flat Female Jack |
| Dimension & Weight | |||||
| Dimension | 33x12x5mm | ||||
| Cable Length | 110mm | 136mm | 110mm | 110mm | 136mm |
| Net Weight | 4.8g | 9.4g | 6.6g | 4.8g | 9.4g |
Specifications are for reference; please refer to the user manual for details.
