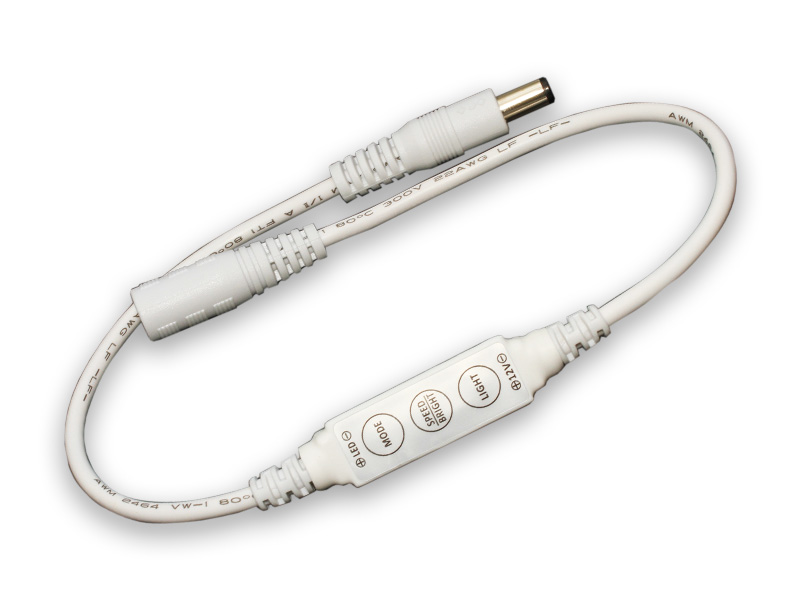

R102 Mini 3-Key Single Color Controller/Dimmer
1 / 4 The R102 series of single color LED controller is designed to drive constant voltage LED products in voltage range of DC5-24V. User can turn on/off, adjust brightness or set dynamic modes conveniently via the keys on controller body.
| R102 Mini 3-Key Single Color LED Controller/Dimmer | ||||
| Model | R102-S | R102-D | R102-WS | R102-WD |
| Electrical Specification | ||||
| Working Voltage | DC 8-16V | DC 5-24V | ||
| Rated Output Current | 5A | |||
| PWM Control Level | 256-Level | |||
| PWM Frequency | 330Hz | |||
| Wrong Polarity Protection | Yes | |||
| Working Temperature | -30~60℃ | |||
| Components & PCB | SMD parts / Gold plated double side FR-4 pcb | |||
| Functions | ||||
| Dynamic Mode | 8 modes | |||
| Dynamic Speed Level | 10 Levels | |||
| Brightness Level | 10 Levels | |||
| Brightness Adjustment | Upward and Downward | |||
| Max Brightness Shortcut | Yes | |||
| On/Off Operation | Yes | |||
| Auto Recall Function | Yes | |||
| Power & LED Connector | ||||
| Power Connector | Red/Black Cable | 5.5mm DC Female Jack | Red/Black Cable | 5.5mm DC Female Jack |
| LED Connector | Red/Black Cable | 5.5mm DC Male Jack | Red/Black Cable | 5.5mm DC Male Jack |
| Dimension & Weight | ||||
| Dimension | 33x12x5mm | |||
| Cable Length | 110mm | 136mm | 110mm | 136mm |
| Net Weight | 7.2g | 16.8g | 7.2g | 16.8g |
Specifications are for reference; please refer to the user manual for details.
No manual available for this product yet.
