R106 Mini RF Single Color controller

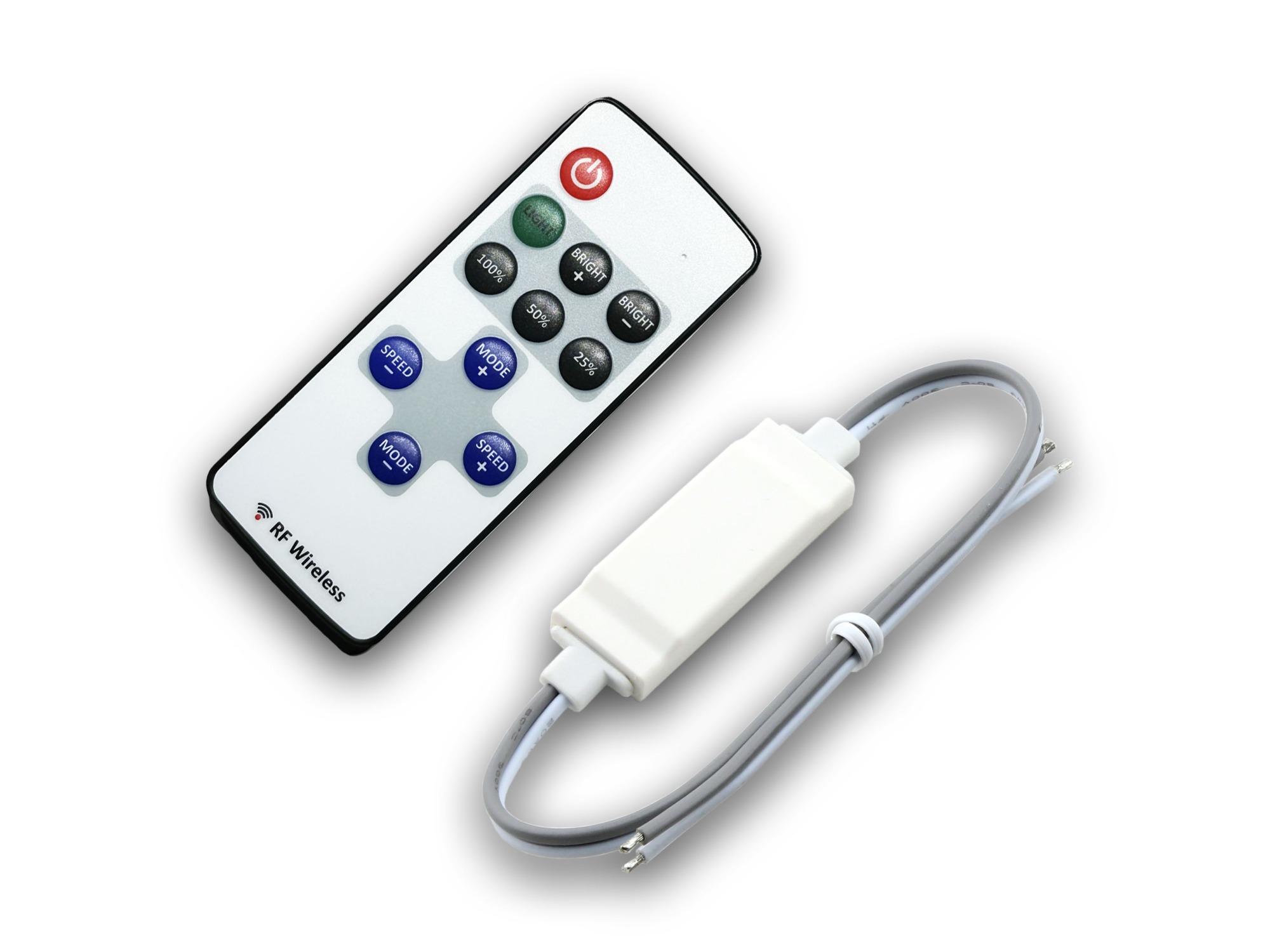

1 / 5 The R106 series of LED dimmer is designed to drive constant voltage LED products in voltage range of DC5-24V. It contains a main control unit and a RF wireless remote controller. User can turn on/off, set dynamic modes or adjust LED brightness conveniently via the remote controller.
| Mini RF Wireless Single Color LED controller | ||||||
| Model | R106 | R110 | ||||
| Electrical Specification | ||||||
| Working Voltage | DC 5-24V | |||||
| Rated Output Current | 5A | |||||
| Remote Control | RF wireless card type remote controller | |||||
| Remote Control Frequency | 433.92MHz | |||||
| Remote Control Battery | CR2025 3V cell battery | |||||
| Remote Transmit Power | <10dBm | |||||
| Remote Distance | >15 meters in open area | |||||
| Remote Controller Matching Mode | Each unit can be matched to 3 remote controllers / Free matching mode | |||||
| PWM Control Level | 256-Level | |||||
| PWM Frequency | 330Hz | |||||
| Protection | Wrong Polarity / Overheat | |||||
| Working Temperature | -30~60℃ | |||||
| Components & PCB | SMD parts / Double side FR-4 pcb | |||||
| Controller Housing | Heat shrink tube | ABS+Silicon | ||||
| Functions | ||||||
| Individual ON/OFF key | No | Yes | ||||
| Dynamic Mode | 8 modes | |||||
| Dynamic Speed Level | 10 Levels | |||||
| Brightness Level | 10 Levels | |||||
| Auto Recall Function | Yes | |||||
| Power & LED Connector | ||||||
| Power Connector | cable lead or 5521 DC jack | |||||
| LED Connector | cable lead or 5521 DC jack | |||||
| Dimension & Weight | ||||||
| Dimension | Main unit: 51x14x6mm; Remote:40x86x6.5mm | |||||
| Cable Length | 120mm | |||||
| Net Weight | 24g | 28g | ||||
Specifications are for reference; please refer to the user manual for details.
