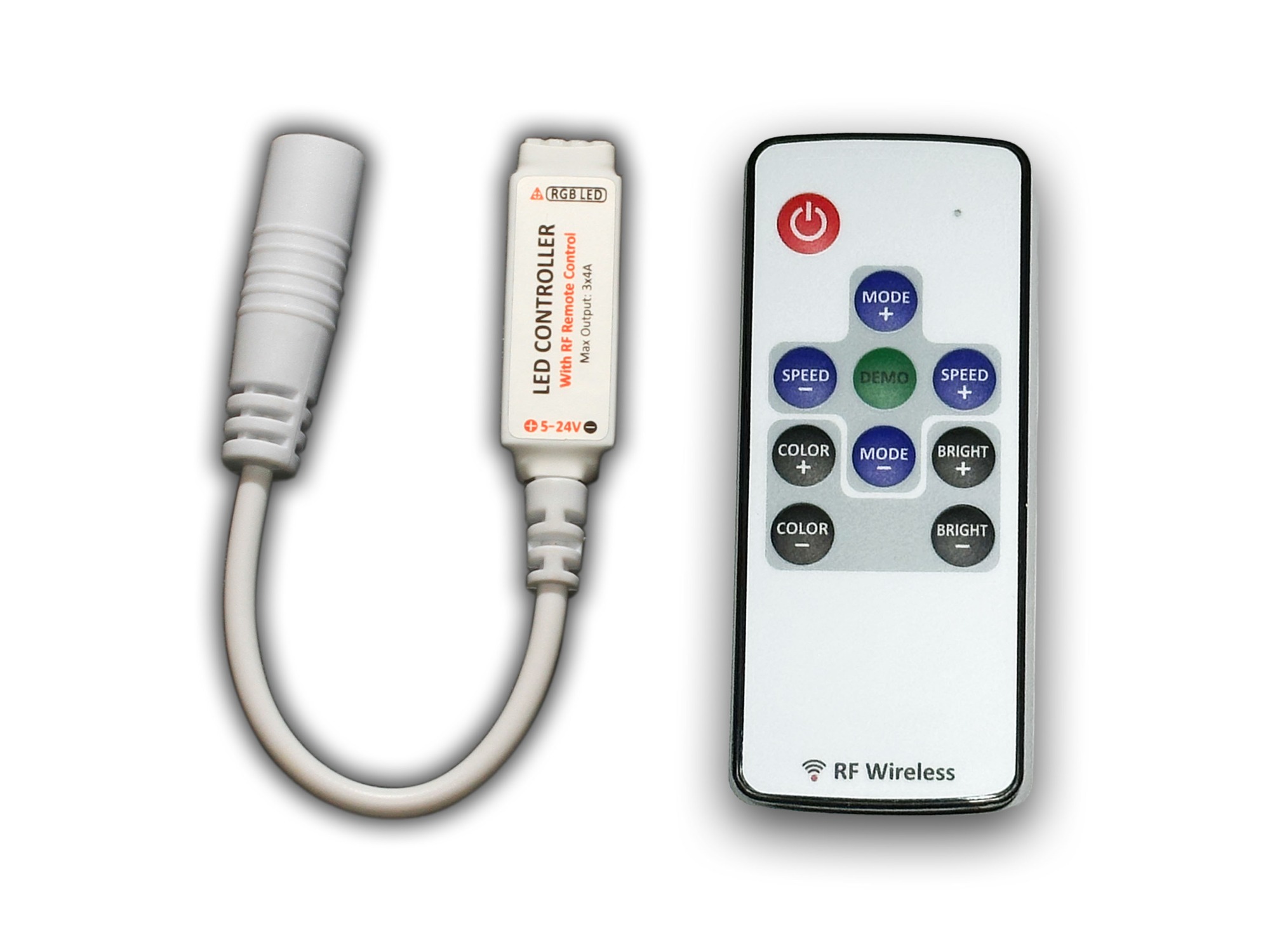

R108 Lite-Mini RF Wireless RGB controller
1 / 5 The R108 series of RGB LED controller is designed to drive constant voltage LED products in voltage range of DC5-24V. It contains a main control unit and a RF wireless remote controller. User can turn on/off, set different color or set dynamic modes conveniently via the remote controller.
| R108 Lite-Mini RF Wireless RGB LED controller | ||||
| Model | R108-D | R108-F | R108-DF | R108-K |
| Electrical Specification | ||||
| Working Voltage | DC 5-24V | |||
| Rated Output Current | 3x2A | |||
| Remote Control | RF wireless card type remote controller | |||
| Remote Control Frequency | 433.92MHz | |||
| Remote Control Battery | CR2025 3V cell battery | |||
| Remote Transmit Power | <10dBm | |||
| Remote Distance | >15 meters in open area | |||
| Remote Controller Matching Mode | Each unit can be matched to 3 remote controllers / Free matching mode available | |||
| PWM Control Level | 256-Level | |||
| PWM Frequency | 190Hz | |||
| Protection | Wrong wiring / Overheat | |||
| Working Temperature | -30~60℃ | |||
| Components & PCB | SMD parts / Double side FR-4 pcb | |||
| Functions | ||||
| Dynamic Mode | 19 modes | |||
| Dynamic Speed Level | 10 Levels | |||
| Static Color | 20 colors | |||
| Color Brightness Level | 5 Levels | |||
| Demo Mode | Yes | |||
| Auto Recall Function | Yes | |||
| Power & LED Connector | ||||
| Power Connector | 5.5mm DC Female | Red/Black Cable | 5.5mm DC Female | 5.5mm DC Female |
| LED Connector | 4-Pin Flat Female Jack | 4-Pin Flat Wire | 4-Pin Flat Wire | 4-Pin SM Type male |
| Dimension & Weight | ||||
| Dimension | Main unit: 51x14x6mm; Remote:40x86x6.5mm | |||
| Cable Length | 120mm | |||
| Net Weight | 25g | 25g | 28g | 23g |
Specifications are for reference; please refer to the user manual for details.
No manual available for this product yet.
