P21 Pro. RF Tunable white LED Controller
.jpg)

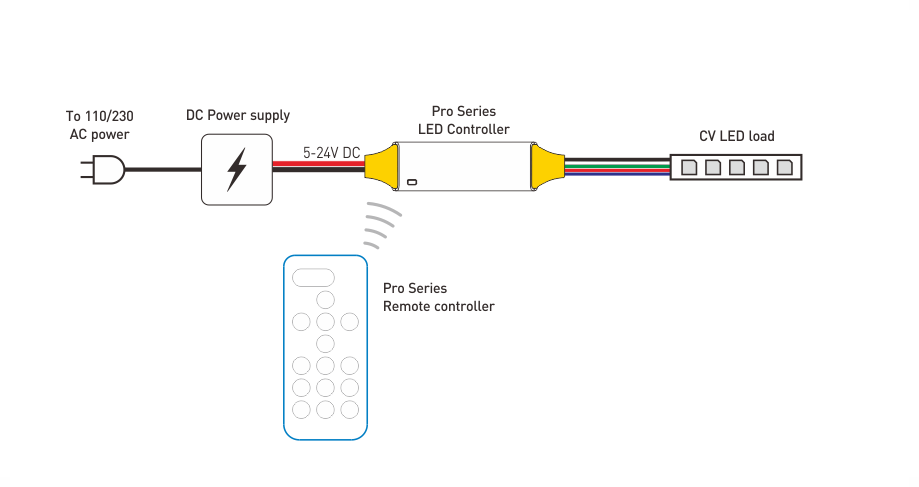

1 / 4 P21 LED controller is designed to drive 2-wire tunable white (CCT) constant voltage LED products in voltage range of DC5-24V. With the RF remote controller, user can setup LED brightness and color temperature with + - and shortcut keys.
| P20/21 Professional RF Wireless Dual Color LED controller | ||||
| Model | P20 | P21 | P20-S | P21-S |
| Electrical Specification | ||||
| Working Voltage | DC 5-24V | |||
| Rated Output Current | 2x7A | 7A | 2x7A | |
| Remote Control | RF wireless card type remote controller | |||
| Remote Control Frequency | 433.92MHz | |||
| Remote Control Battery | CR2032 3V cell battery | |||
| Remote Transmit Power | < 10dBm | |||
| Remote Distance | >15 meters in open area | |||
| Remote Controller Matching Mode | Each unit can be matched to 5 remote controllers / Free matching mode | |||
| PWM Control Level | 256-Level | |||
| PWM Frequency | 500Hz-8KHz Adjustable (1KHz Default) | |||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |||
| Working Temperature | -30~60℃ | |||
| IP Grade | IP-63 | IP-68 | ||
| Components & PCB | SMD parts / Double side FR-4 pcb | |||
| Functions | ||||
| Brightness Level | 7 Levels | |||
| Color Temp. Level | 7 Levels | |||
| Brightness Shortcut | 3 Levels | |||
| Color Temp. Shortcut | 3 Levels | |||
| Auto Recall Function | Yes | |||
| Power & LED Connector | ||||
| Power Connector | AWG16 Red / Black cable | |||
| LED Connector | AWG18 flat cable- 4 wires | AWG 16 cable-2 wires | AWG18 flat cable- 4 wires | AWG 16 cable-2 wires |
| Dimension & Weight | ||||
| Dimension | Main unit: 87x21x8.5mm, Remote: 40x86x6.5mm | |||
| Cable Length | 120mm | |||
| Net Weight | 36g | 40g | ||
Specifications are for reference; please refer to the user manual for details.
