MP70 Umi digital SPI LED Controller

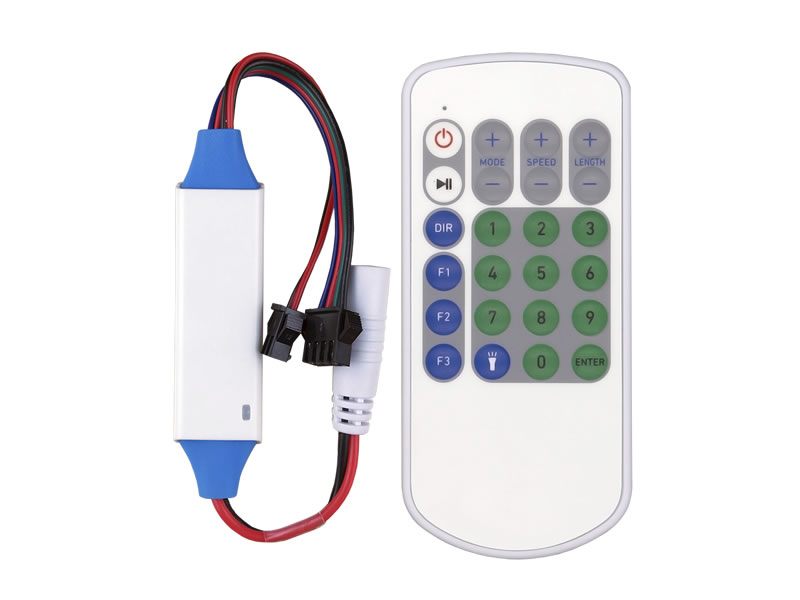

1 / 5 MP70 LED controller is designed to drive various digital LED strip or spot lights with decode IC. It can be controlled by remote controller and Umi Smart app (-A version). With advanced BLE mesh technology, multiple controllers can work synchronously with a robust connection. For option, IP68 waterproof feature is available on -S version, and timing play function is available on -T version.
| MP70 Umi Digital LED Strip Controller | ||
| Model | MP70-K1 | MP70-K2 |
| Model Suffix | A: app support; S: IP68 waterproof; T: RTC timing play | |
| Electrical Specification | ||
| Working Voltage | DC 5-24V | |
| Wireless Connection | SIG Bluetooth mesh protocol | |
| Control method | Remote controller and/or smartphone app | |
| Wireless Transmit Power | <7dBm | |
| Wireless Distance | >15 meters at open area | |
| Driving Range | 500 Pixels / 1000 Pixels | |
| Driving ICs | Support all known spec IC | |
| Protection Function | Wrong wiring / Output short circuit | |
| Waterproof | standard: IP63; -S model: IP68 | |
| Working Temperature | -20~55℃ | |
| Functions | ||
| Effect Modes | Total 672 modes | |
| Static Color Mode | Yes | |
| Individual White Effects | Yes | |
| Running Direction Adjust | Yes | |
| Synchronization between Controllers | Yes | |
| Library Load and Save | Yes, 3 slots | Yes, 6 slots |
| Power & LED Connector | ||
| Power Connector | 5.5mm DC female jack | |
| Strip Connector | 4-Pin SM type connector | |
| Dimension & Weight | ||
| Dimension | Main unit: 87x21x8.5mm, Remote: 115x52x5mm | |
| Net Weight | 62g | 61g |
Specifications are for reference; please refer to the user manual for details.
