NT20 Tuya Series CCT Controller

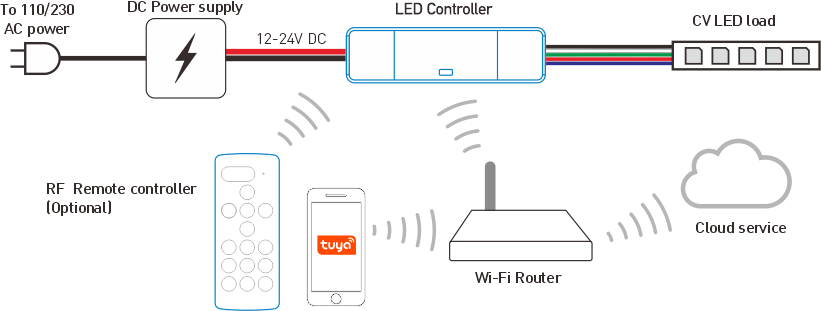

1 / 4 NT20 LED controller is designed to drive constant voltage CCT LED products in the voltage range of DC6-24V. It can be controlled by smartphone with the Tuya app via wi-fi connection or by the stand-alone RF remote controller. Users can set up LED brightness, color temperature with the rich function on smartphone Tuya app or the easy operation remote controller.
| NT series Tuya+Remote CV LED controller | |||||
| Model | NT12 | NT20 | NT30 | NT40 | NT50 |
| Model Suffix | W: Tuya Wifi; Z: Tuya Zigbee; B: Tuya Bluetooth | ||||
| Function | Single Color CV controller with RF remote controller | CCT CV controller with RF remote controller | RGB CV controller with RF remote controller | RGBW CV controller with RF remote controller | RGB+CCT CV controller with RF remote controller |
| Electrical Specification | |||||
| Working Voltage | DC 12-24V | ||||
| Rated Output Current | 10A | 2x5A | 3x4A | 4x3A | 5x2.5A |
| Smartphone Connection | Tuya Wifi, Tuya Zigbee or Tuya Bluetooth | ||||
| Remote controller connection | 433MHz RF | ||||
| RF remote transmit power | <7dBm | ||||
| RF remote control distance | >10 meters at open area | ||||
| PWM output grade | 4000 levels | ||||
| PWM Frequency | 1KHz | ||||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | ||||
| Working Temperature | -20~55℃ | ||||
| Functions | |||||
| RF remote control | Yes, with optional magnet wall holder | ||||
| Dynamic Mode | Yes | Yes | N/A | Yes | |
| Gradient Speed | Adjustable on app | ||||
| Power on Status | Adjustable on app | ||||
| Power & LED Connector | |||||
| Power Connector | Slot screw block terminal, max 12AWG cable | ||||
| LED Connector | Slot screw terminal, max 17AWG each slot (max 12AWG for NT12) | ||||
| Dimension & Weight | |||||
| Dimension | Main unit: 87x24x15mm, Remote: 86.5x36x7.5mm(122x35x9mm for NT12) | ||||
| Net Weight | 38g (exclude magnet remote holder) | ||||
Specifications are for reference; please refer to the user manual for details.
