TT10 Tuya Series Single Color Controller

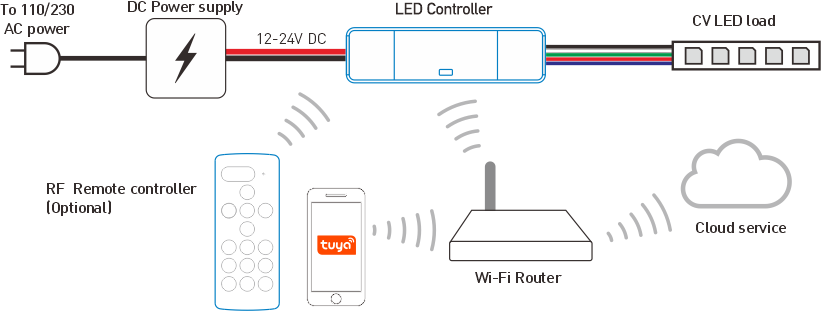

1 / 4 TT10 LED controller is designed to drive constant voltage single color LED products in voltage range of DC12-24V. It can be controlled by Tuya smart app or by a RF wireless remote controller. User can setup LED brightness, scene and dynamic effects with the rich function on the Tuya smart app or from the easy operation remote controller.
| TT series Tuya+Remote CV LED controller | |||
| Model | TT10 | TT12 | TT40 |
| Model Suffix | W: Tuya Wifi; Z: Tuya Zigbee; B: Tuya Bluetooth | ||
| Function | Single Color CV controller with RF remote controller | Single Color CV controller with RF remote controller | RGBW CV controller with RF remote controller |
| Electrical Specification | |||
| Working Voltage | DC 12-24V | ||
| Rated Output Current | 6A | 4x2A | |
| Smartphone Connection | Tuya Wifi, Tuya Zigbee or Tuya Bluetooth | ||
| Remote controller connection | 433MHz RF | ||
| RF remote transmit power | <7dBm | ||
| RF remote control distance | >10 meters at open area | ||
| PWM output grade | 4000 levels | ||
| PWM Frequency | 1KHz | ||
| Protection Function | Wrong Polarity / Overheat | ||
| Working Temperature | -20~55℃ | ||
| Functions | |||
| RF remote control | Yes, with optional magnet wall holder | ||
| Dynamic Mode | Yes | N/A | Yes |
| Gradient Speed | Adjustable on app | ||
| Power on Status | Adjustable on app | ||
| Power & LED Connector | |||
| Power Connector | cable lead or 5521 DC jack, customizable | ||
| LED Connector | cable lead or 5521 DC jack, customizable | ||
| Dimension & Weight | |||
| Dimension | Main unit: 60x20.5x8.7mm, Remote: 86.5x36x7.5mm(122x35x9mm for TT12) | ||
| Net Weight | 38g (exclude magnet remote holder) | ||
Specifications are for reference; please refer to the user manual for details.
