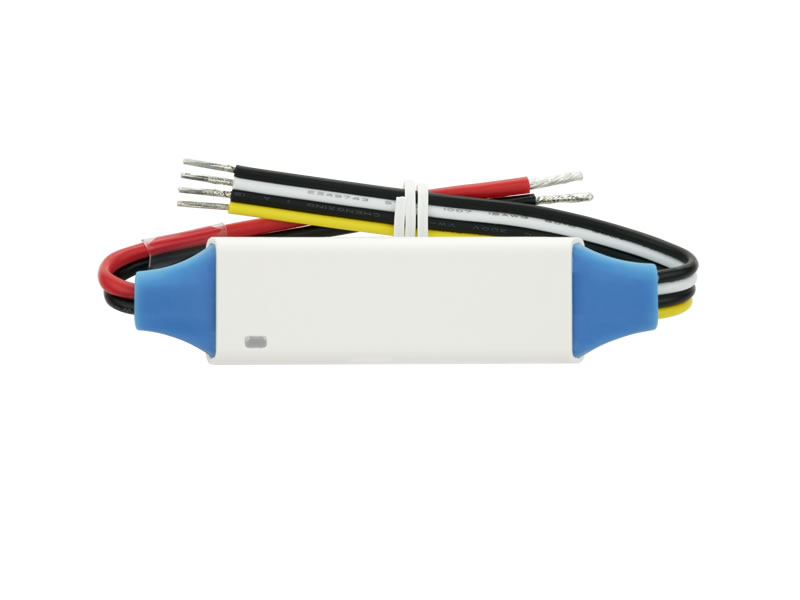

MP20 Umi BLE Tunable White Controller
1 / 5 M P Umi series LED controllers are designed to drive constant voltage LED products in voltage range of DC6-24V. They can be controlled by the Umi compatible remote controllers and Smartphone app (-A version). With advanced BLE mesh technology, controllers can work synchronously with a robust connection. The IP68 waterproof feature is available on -S version, and timing play function with built-in real time clock is available on -T version.
| MP series Umi CV LED controller | ||||
| Model | MP10 | MP20 | MP30 | MP40 |
| Function | Single Color CV controller | CCT CV controller | RGB CV controller | 4-in-1 CV controller |
| Function Option | -A: Support smartphone app; -T: With RTC timing play function -S: IP68 waterproof treated; | |||
| Electrical Specification | ||||
| Working Voltage | DC 6-24V | |||
| Rated Output Current | 12A | 2x7A | 3x5A | 3x3+5A |
| Wireless Connection | SIG Bluetooth mesh protocol | |||
| Control Method | Remote controller and/or smartphone app | |||
| Wireless Transmit Power | <7dBm | |||
| Wireless Distance | >20 meters at open area | |||
| PWM Output Grade | 4000 levels | |||
| PWM Frequency | 498Hz-15.7KHz optional, 1KHz default | |||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |||
| Waterproof | IP63 for standard version, IP68 for -S version | |||
| Working Temperature | -20~55℃ | |||
| Functions | ||||
| RTC Timing Play | Available on -T models, with backup power. | |||
| Dynamic Mode | Yes | N/A | Yes | |
| Group / Scene Function | Yes | |||
| Synchronization between Controllers | Yes | |||
| Power on Status | Adjustable from app, last status or preset | |||
| Gradient Speed | Adjustable from app, 6 levels | |||
| Power & LED Connector | ||||
| Power Connector | 16AWG cable | |||
| LED Connector | 16AWG cable | 18AWG cable | 20AWG cable | |
| Dimension & Weight | ||||
| Dimension | 87x21x8.5mm | |||
| Net Weight | 23g for standard version, 26g for -S version | |||
Specifications are for reference; please refer to the user manual for details.
