NM40 Umi BLE RGB+White Controller

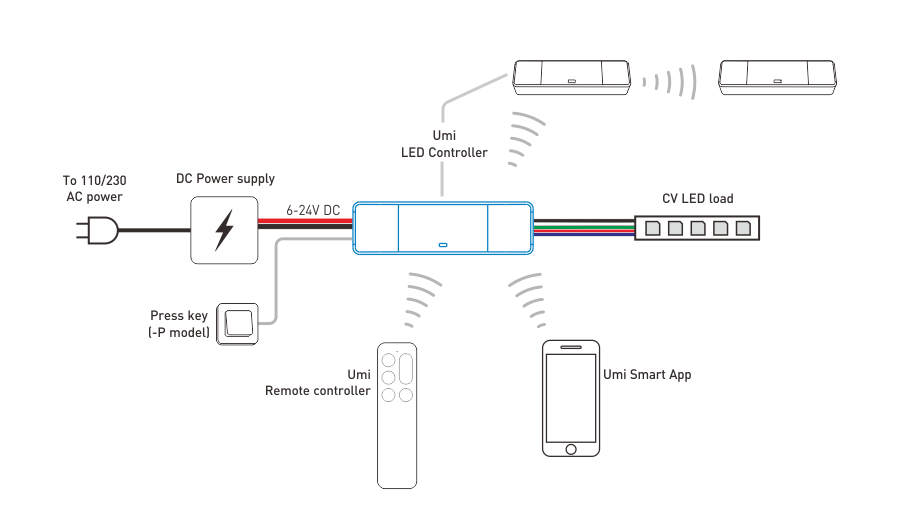

1 / 4 NM Umi series LED controllers are designed to drive constant voltage LED products in voltage range of DC5-24V. They can be controlled by the Umi compatible remote controllers and Smartphone app (-A version). With advanced BLE mesh technology, controllers can work synchronously with a robust connection. With on-board press key on/off and dimming control (-P version), user can setup lighting project with multiple operation method.
| NM series Umi CV LED controller | ||||
| Model | NM10 | NM20 | NM30 | NM40 |
| Function | Single Color CV controller | CCT CV controller | RGB CV controller | 4-in-1 CV controller |
| Function Option | -A: Support smartphone app; -P: Onboard press key operation; | |||
| Electrical Specification | ||||
| Working Voltage | DC 5-24V | |||
| Rated Output Current | 10A | 2x5A | 3x4A | 4x3A |
| Wireless Connection | SIG Bluetooth mesh protocol | |||
| Control Method | Remote controller and/or smartphone app | |||
| Wireless Transmit Power | <7dBm | |||
| Wireless Distance | >20 meters at open area | |||
| PWM Output Grade | 4000 levels | |||
| PWM Frequency | 500Hz-4KHz optional, 1KHz default | |||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |||
| Working Temperature | -20~55℃ | |||
| Functions | ||||
| Dynamic Mode | Yes | N/A | Yes | |
| Group / Scene Function | Yes | |||
| Synchronization between Controllers | Yes | |||
| Power on Status | Adjustable from app, last status or preset | |||
| Smooth Fading | Gradient Speed | |||
| Local Control Method | Press-key optional (-P version) | |||
| Power & LED Connector | ||||
| Power Connector | 12-24 AWG screw terminal | |||
| LED Connector | 12-24 AWG screw terminal | 16-24AWG screw terminal | ||
| Dimension & Weight | ||||
| Dimension | 87x21x8.5mm | |||
| Net Weight | 21g ± 2g | |||
Specifications are for reference; please refer to the user manual for details.
