XV50 Umi BLE RGB+CCT Controller

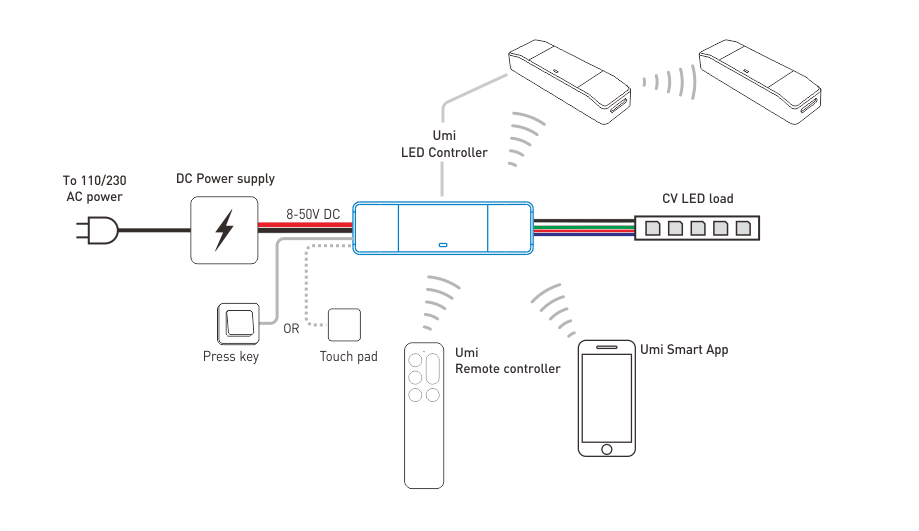

1 / 4 XV Umi series LED controllers are designed to drive constant voltage LED products in voltage range of DC 8-50V. They can be controlled by the Umi compatible remote controllers and Smartphone app (-A version). With advanced BLE mesh technology, controllers can work synchronously with a robust connection. Onboard press key or touch(-P/C version) option and onboard real time clock (-T version) timing play function is available for multiple application.
| XV series Umi CV LED controller | |||||
| Model | XV10 | XV20 | XV30 | XV40 | XV50 |
| Function | Single Color CV controller | CCT CV controller | RGB CV controller | RGBW CV controller | 5-in-1 CV controller |
| Function Option | -A: Support smartphone app; -T: With RTC timing play function | ||||
| Electrical Specification | |||||
| Working Voltage | DC 8-50V | ||||
| Rated Output Current | 16A | 2x8A | 3x8A | 4x8A (total max 24A) | 5x8A (total max 24A) |
| Wireless Connection | SIG Bluetooth mesh protocol | ||||
| Control Method | Remote controller and/or smartphone app | ||||
| Wireless Transmit Power | <7dBm | ||||
| Wireless Distance | >20 meters at open area | ||||
| PWM Output Grade | 4000 levels | ||||
| PWM Frequency | 498Hz - 15.7KHz adjustable, 1KHz default | ||||
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | ||||
| Working Temperature | -20~55℃ | ||||
| Functions | |||||
| RTC Timing Play | Available on -T models, with backup power. | ||||
| Dynamic Mode | Yes | N/A | Yes | ||
| Group / Scene Function | Yes | ||||
| Synchronization between Controllers | Yes | ||||
| Power on Status | Adjustable from app, last status or preset | ||||
| Gradient Speed | Adjustable from app, 6 levels | ||||
| Local Control Method | Press key | ||||
| Power & LED Connector | |||||
| Power Connector | Push connector | ||||
| LED Connector | Push connector | ||||
| Dimension & Weight | |||||
| Dimension | 134x39x24mm | ||||
| Net Weight | 63g | 63g | 63g | 64g | 64g |
Specifications are for reference; please refer to the user manual for details.
