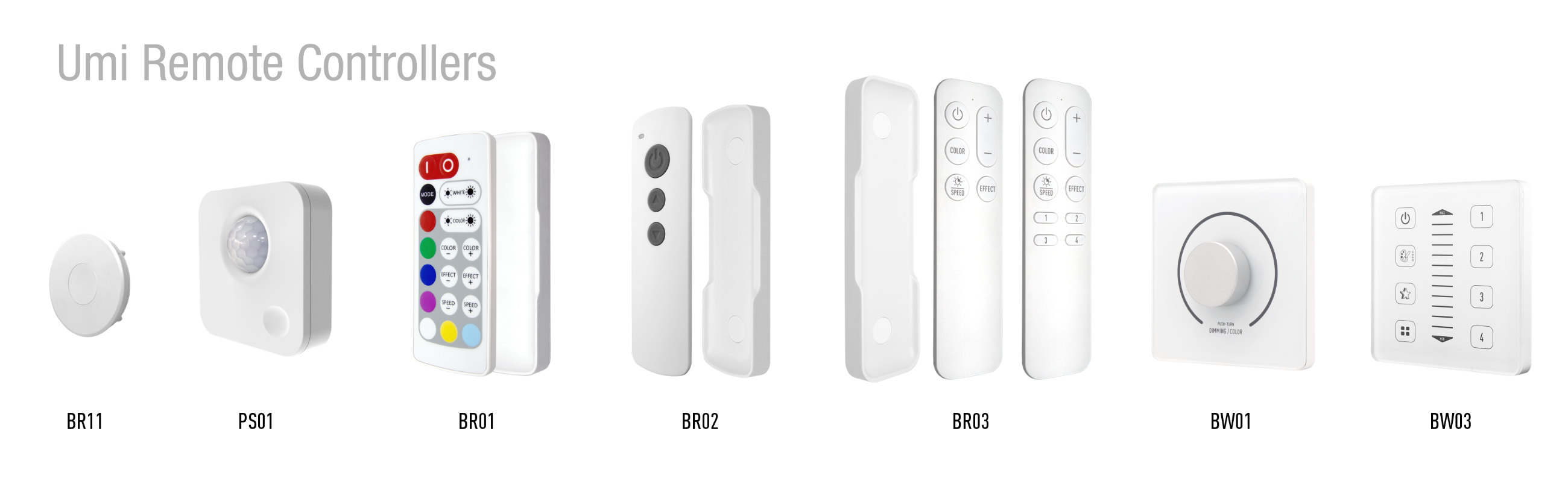

BR11 Emmbedded remote controller
1 / 2 BR11 Umi series embedded remote can be paired to multiple different function Umi LED controller or drivers. Beside the ON/OFF and dimming function, user can double click the button to activate the color adjusting mode and switch the color mixing mode between white(CCT), RGB and White(CCT)+RGB mode. W ith ultra-low power consumption, o ne CR2032 cell battery can support several years of usage.
| Umi Embedded Common Remote Controller | |||
| Model | BR11-C | ||
| Function | On/off, dimming, and color tuning. Work with all models. | ||
| Electrical Specification | |||
| Working Voltage | DC3V, CR2032 cell battery | ||
| Wireless Connection | Umi protocol based on SIG Bluetooth mesh | ||
| RF Band | 2.4GHz ISM band | ||
| Wireless Transmit Power | <7dBm | ||
| Wireless Distance | >20 meters at open area | ||
| Standby Current | <1uA current | ||
| Working Temperature | -20~55℃ | ||
| Functions | |||
| Operation Mode | Click / hold press / double click | ||
| User Interaction | Variable brightness indicator | ||
| Installation | φ35mm embedded installation | ||
| Dimension & Weight | |||
| Dimension | φ35x9mm | ||
| Net Weight | 6g | ||
Specifications are for reference; please refer to the user manual for details.
