PS01 Umi PIR Sensor / Remote
.jpg)
1 / 5 PS01 is a passive presence sensor with integrated touch key. It needs to be used with Umi compatible LED controller or driver to turn on lights while presence detection, user also can use it as a remote controller with on/off, dimming and color tuning function by the touch key.

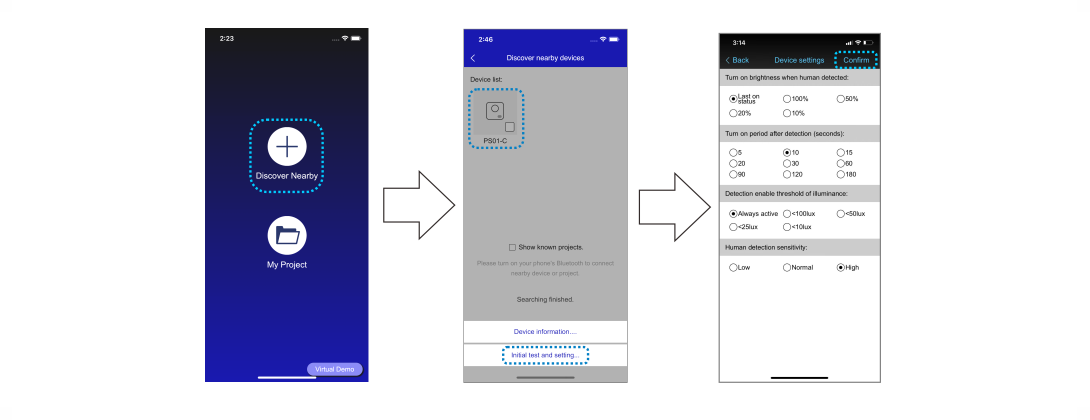

There’s advanced feature with turn off timer, turn on brightness, detection sensitivity and luminance trigger level can be adjusted from the Umi Smart app. With the long battery life option (-L) and ultra-low standby power, it can work more than 5 years with free of battery replacement.
| Umi Presence Sensor with Touch Key Remote Controller | ||
| Model | PS01 | PS01-L |
| Function | PIR presence sensing with enviroment illuminance threshold, touch key on/off, dimming, and color tuning. Work with all Umi receivers. | |
| Electrical Specification | ||
| Working Voltage | DC3V, CR2032 cell battery | DC3V, Built-in CR2450 and auxilary CR2032 battery |
| Wireless Connection | SIG Bluetooth mesh protocol | |
| RF Band | 2.4GHz ISM band | |
| Wireless Transmit Power | <7dBm | |
| PIR Sensitivity | 2-8 meters, with 120° range, Adjustable from app | |
| Enviroment illuminance enable threshold | 100lux to 10lux configurable from Umi smart app | |
| Wireless Distance | >20 meters at open area | |
| Typical battery life time | >1.5 years | >5 years for built-in battery, >1.5 years for auxilary battery after built-in battery out. |
| Working Temperature | -20~30℃ | |
| Functions | ||
| Operation Mode | PIR sensing, touch key click / hold press / double click | |
| Turn on brightness | 5 levels, adjustable from app | |
| Turn on period | 5-180 seconds, adjustable from app | |
| Illumination threshold | 5 levels, adjustable from app | |
| Human detection sensitivity | 3 levels, adjustable from app | |
| Dimension & Weight | ||
| Dimension | 60x60x20mm | |
| Net Weight | 17g | 19g |
Specifications are for reference; please refer to the user manual for details.
