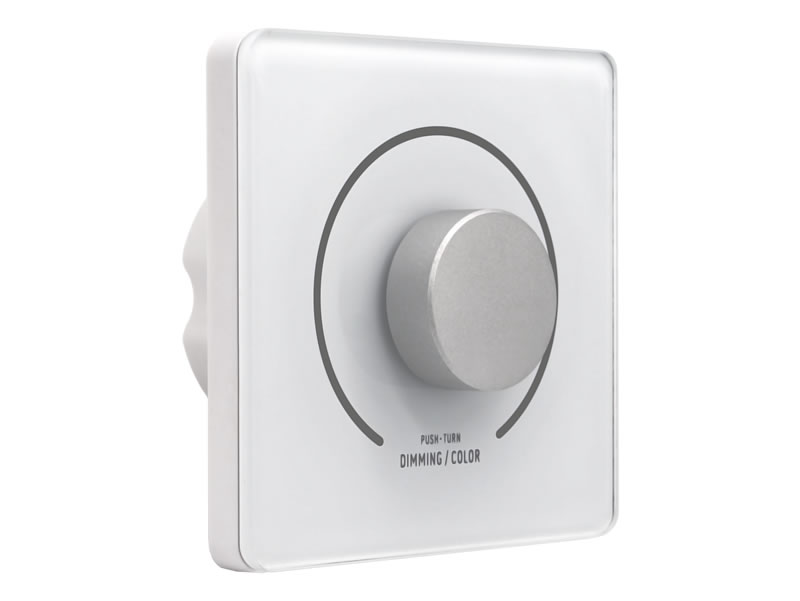

BW01 Umi Rotary Wall-Switch Remote
1 / 4 BW01 wall panel is designed to control compatible Single color, CCT, RGB, RGB+White or RGB+CCT LED controllers, drivers or lighting fixtures via Umi wireless protocol. There are two power supply options with AC power or cell battery. The AC version can fit traditional wall installation with AC power and the battery version can be easily installed at any preferred place. Besides ON/OFF and dimming operation, user can also adjust color and mixing mode by simple double click operation.
| Umi Rotary Wall-Switch Common Remote Controller | ||
| Model | BW01-CA | BW01-CB |
| Function | On/off, dimming, changing CCT or color. AC powered | On/off, dimming, changing CCT or color. Cell battery powered |
| Electrical Specification | ||
| Working Voltage | A version: AC 90-265V; B version: CR2032 cell battery | |
| Wireless Connection | SIG BLE mesh protocol | |
| Wireless Transmit Power | <7dBm | |
| Wireless Distance | >20 meters at open area | |
| Standby Power Consumption | A version:<0.5Watt; B version: <5uA current | |
| Working Temperature | -30~60℃ | |
| Material & Finish | Rounded tempered glass panel, Aluminum knob | |
| Functions | ||
| Operation Mode | Single push, double push, dual direction rotary | |
| User Interaction | Beeper | |
| Power & LED Connector | ||
| Power Connector | A version: Wago250 standard push connector; B version: N/A | |
| Dimension & Weight | ||
| Dimension | A version: 86x86x39mm; B version: 86x86x10mm | |
| Net Weight | A version: 128g; B version: 115g | |
Specifications are for reference; please refer to the user manual for details.
