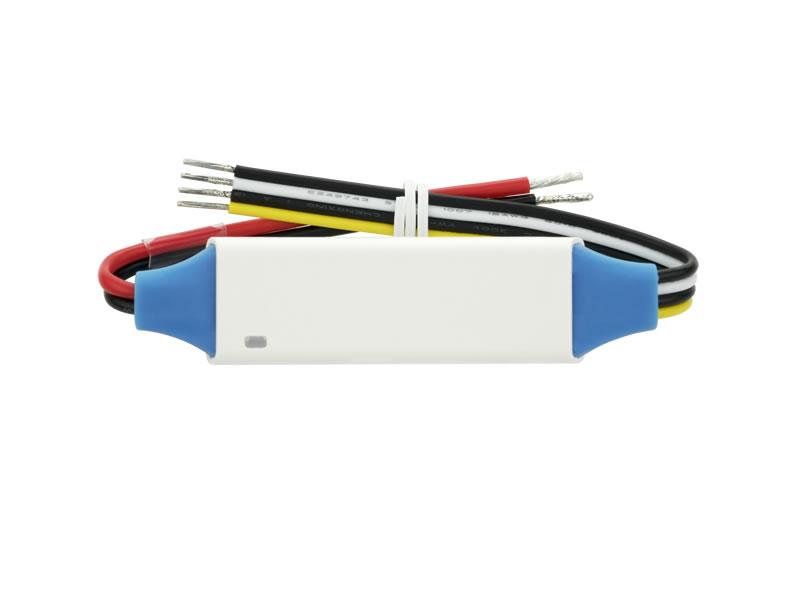

ZA20 Zigbee Tunable White controller

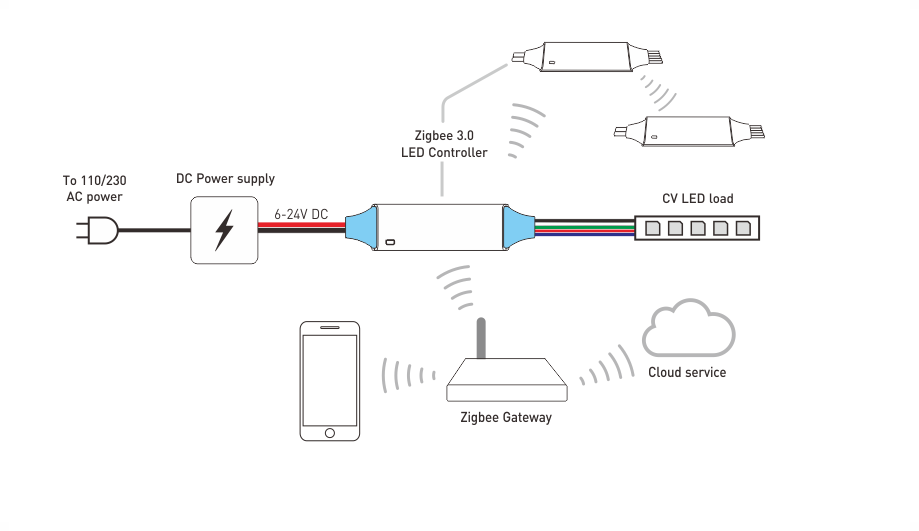

1 / 5 ZA20 LED controllers are designed to drive constant voltage LED products in voltage range of DC6-24V. With Zigbee 3.0 protocol support, controllers can be controlled by most Zigbee gateways or smart hosts. With compact housing and lead wire design, the controller can be installed at limited space. The IP68 waterproof feature is supported on -S version for various applications.
| Zigbee 3.0 LED Controller | ||
| Model | ZA20 | ZA40 |
| Function | Zigbee CCT CV Controller | Zigbee RGBW CV Controller |
| Electrical Specification | ||
| Working Voltage | DC 6-24V | DC 6-24V |
| Rated Output Current | 2x7A | 4x3A |
| Wireless Connection | Zigbee 3.0 (Compatible to ZLL) | |
| RF Band | ISM 2.4GHz | |
| Wireless Transmit Power | <7dBm | |
| Wireless Distance | >15 meters at open area | |
| PWM Frequency | 500Hz-4KHz (1KHz default) | |
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |
| Working Temperature | -20~55℃ | |
| IP Grade | IP63 for standard version, IP68 for -S version | |
| Components & PCB | SMD parts / 4-layer FR-4 pcb | |
| Functions | ||
| Brightness Control | Yes, function through host gateway and App | |
| CCT or Color Control | Yes, function through host gateway and App | |
| Power off memory | Yes | |
| Power & LED Connector | ||
| Power Connector | 16AWG cable | |
| LED Connector | 18AWG cable | 20AWG cable |
| Dimension & Weight | ||
| Dimension | 87x21x8.5mm | |
| Net Weight | 23g | 23g |
Specifications are for reference; please refer to the user manual for details.
