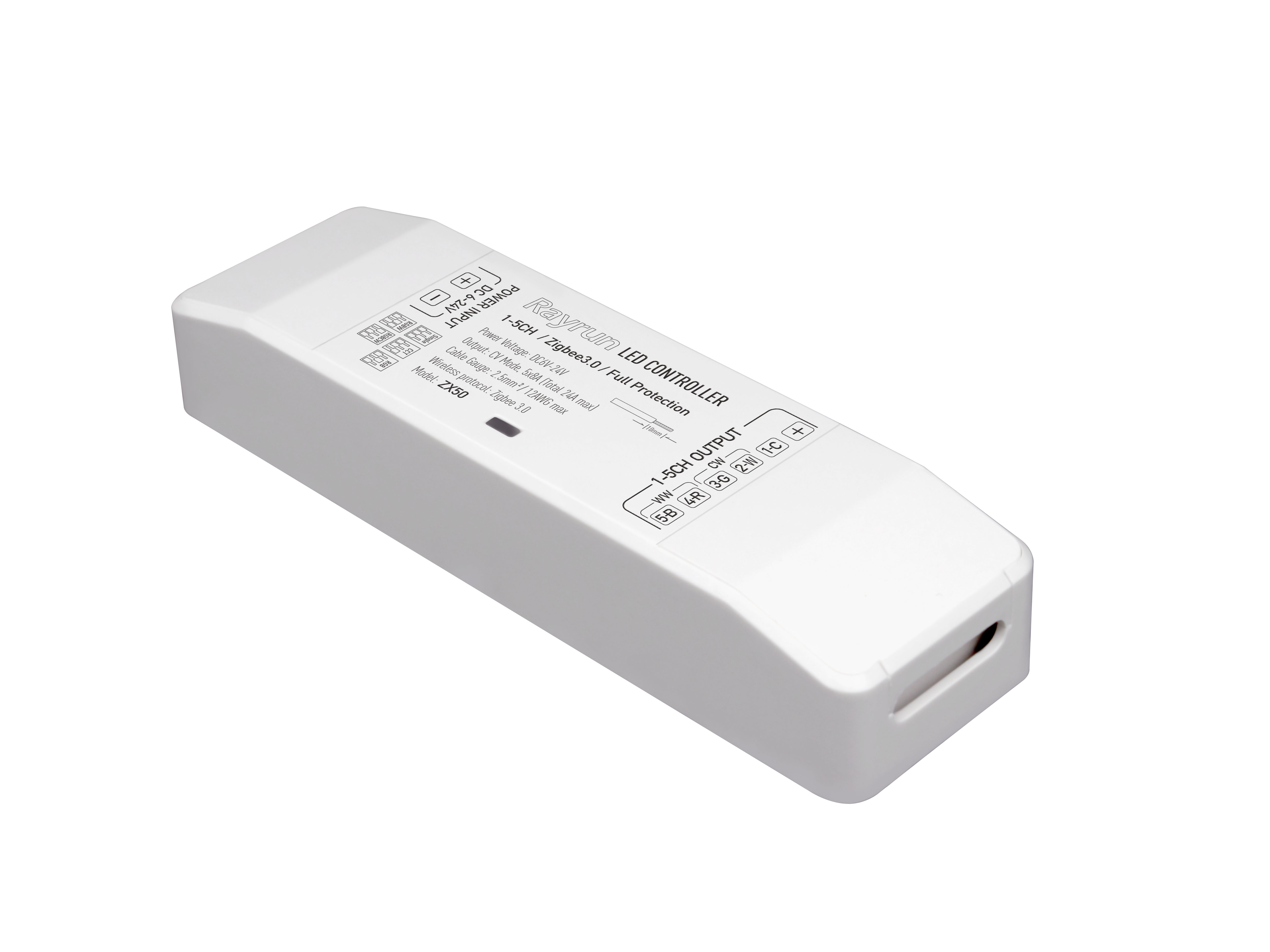

ZX50 Zigbee 3.0 5-in-1 CV controller
1 / 4 ZX50 LED controllers are designed to drive constant voltage LED products in voltage range of DC6-24V. With Zigbee 3.0 protocol support, controllers can be controlled by most Zigbee gateways or smart hosts. The controllers have full protection function to guarantee the safety of applications. With push connectors and cable holders on both sides, the wiring is easy and secure to make the installation more reliable and durable.
| Zigbee 3.0 LED Controller | |
| Model | ZX50 |
| Function | 5-in-1 Zigbee 3.0 CV Controller |
| Electrical Specification | |
| Working Voltage | DC 6-24V |
| Rated Output Current | 5x8A (Total max 24A) |
| Wireless Connection | Zigbee 3.0 Protocol |
| RF Band | ISM 2.4GHz |
| Wireless Transmit Power | <7dBm |
| Wireless Distance | >20 meters at open area |
| PWM Frequency | 500Hz-4KHz optional (1KHz default) |
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat |
| Working Temperature | -20~55℃ |
| IP Grade | IP20 |
| Components & PCB | SMD parts / FR-4 pcb |
| Functions | |
| Output Channel | Single color, CCT, RGB, RGBW, RGBCW. Switchable by dip switch |
| Brightness Control | Yes, function through host gateway and App |
| CCT or Color Control | Yes, function through host gateway and App |
| Power off memory | Yes |
| Power & LED Connector | |
| Power Connector | Push connector up to 2.5 mm2 Cable |
| LED Connector | Push connector up to 2.5 mm2 Cable |
| Dimension & Weight | |
| Dimension | 134x39x24mm |
| Net Weight | 63g |
Specifications are for reference; please refer to the user manual for details.
