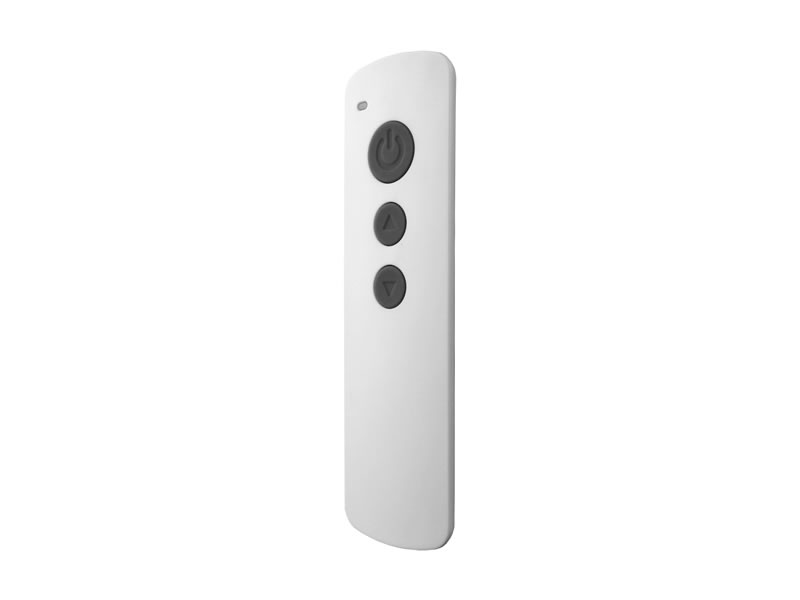

ZR02 Zigbee 3.0 Handheld Remote
1 / 3 ZR02 hand remote with simplified operation & minimalist design is designed to control Zigbee 3.0 controllers which has robust Zigbee wireless protocol based. This series has ultra low power and long life cell battery.
| Zigbee 3.0 Common Fucntion Handheld Remote Controller | |||
| Model | ZR02 | ||
| Function | On/off, dimming, color tuning | ||
| Electrical Specification | |||
| Working Voltage | DC3V, CR2032 cell battery | ||
| Wireless Connection | Zigbee 3.0 protocol | ||
| RF Band | 2.4GHz ISM band | ||
| Wireless Transmit Power | <7dBm | ||
| Wireless Distance | >20 meters at open area | ||
| Standby Current | <1uA current | ||
| Working Temperature | -20~55℃ | ||
| Functions | |||
| Operation Mode | Click press / hold press / combo key | ||
| User Interaction | Indicator | ||
| Installation | Optional magnet wall holder | ||
| Dimension & Weight | |||
| Dimension | 122x35x9mm | ||
| Net Weight | 25g | ||
Specifications are for reference; please refer to the user manual for details.
